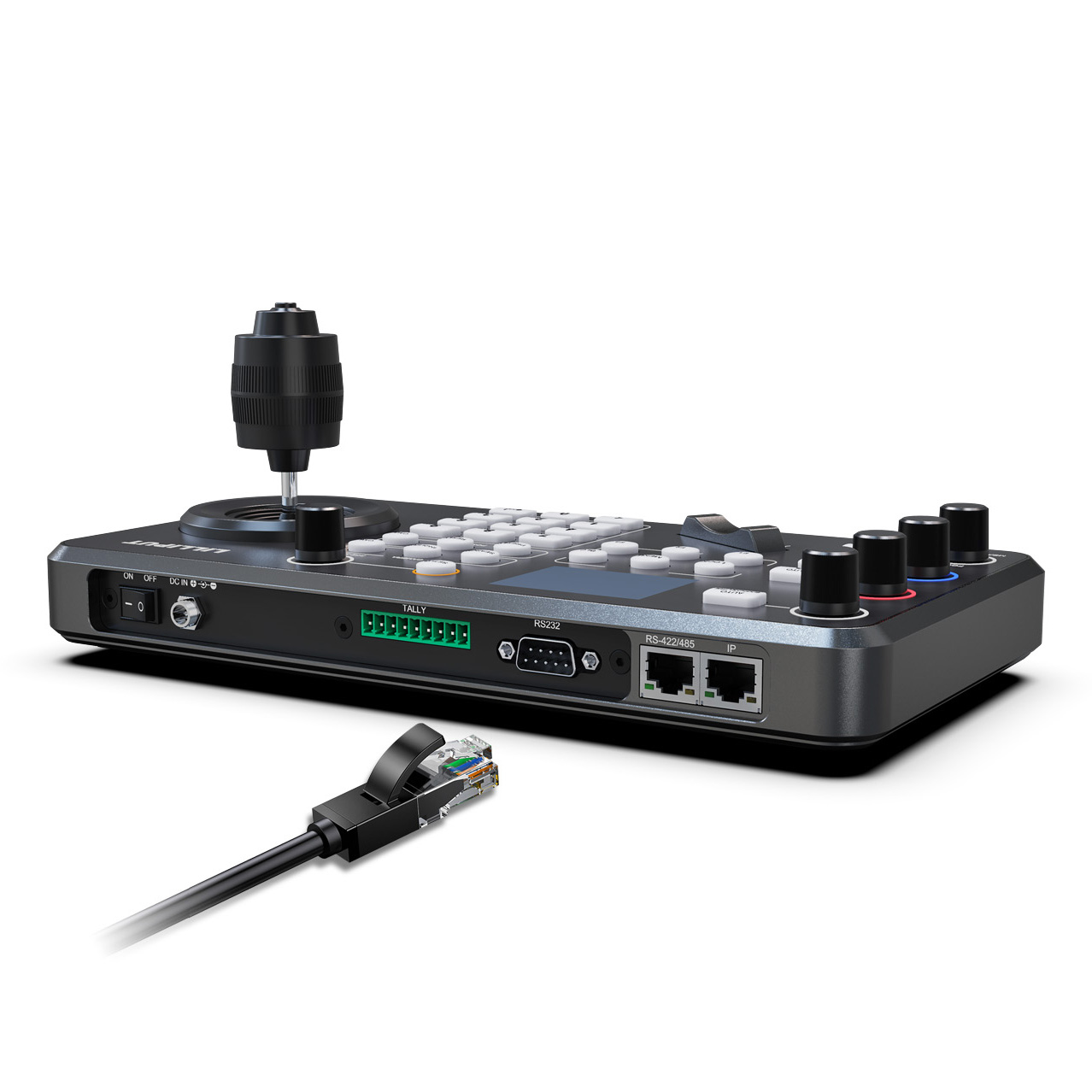

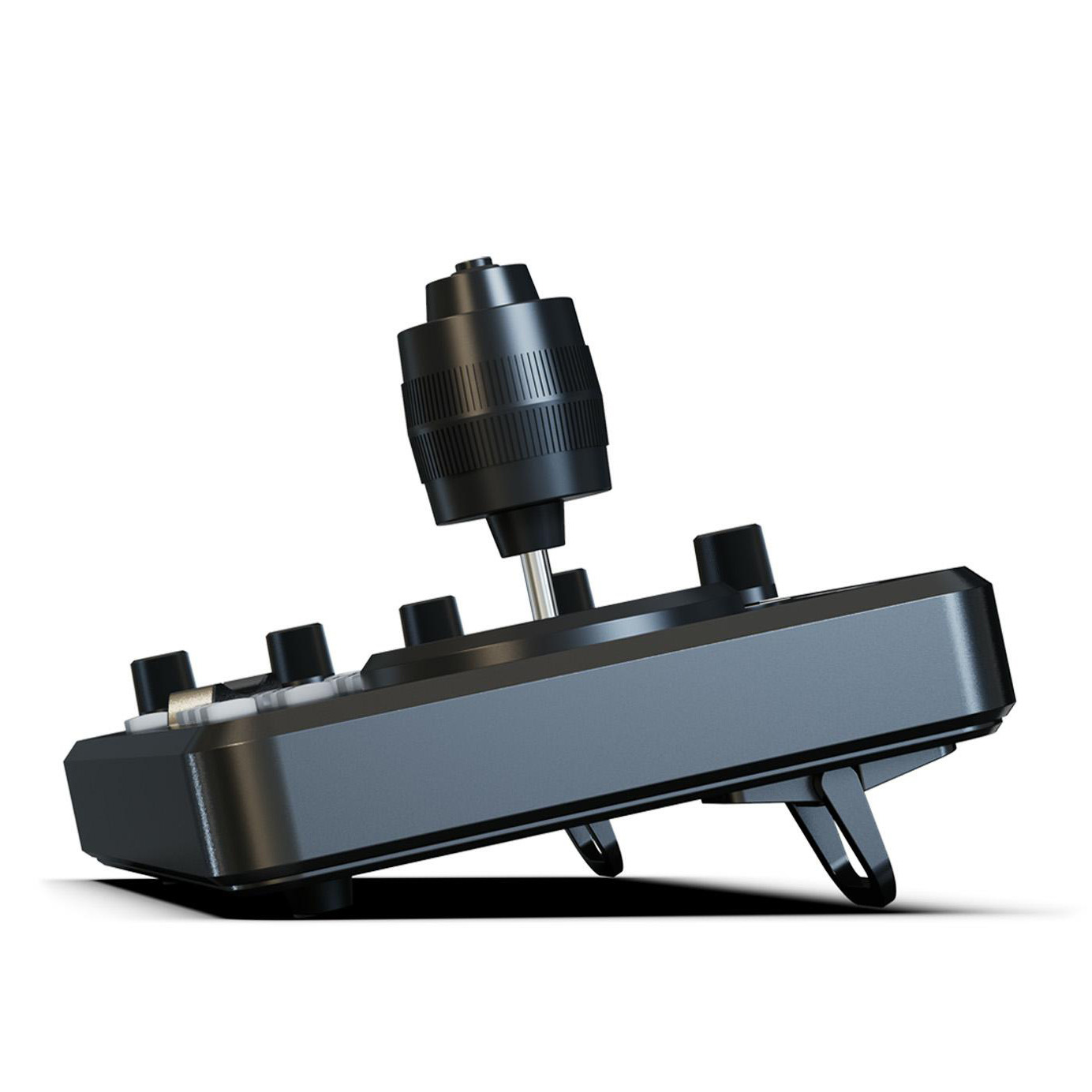

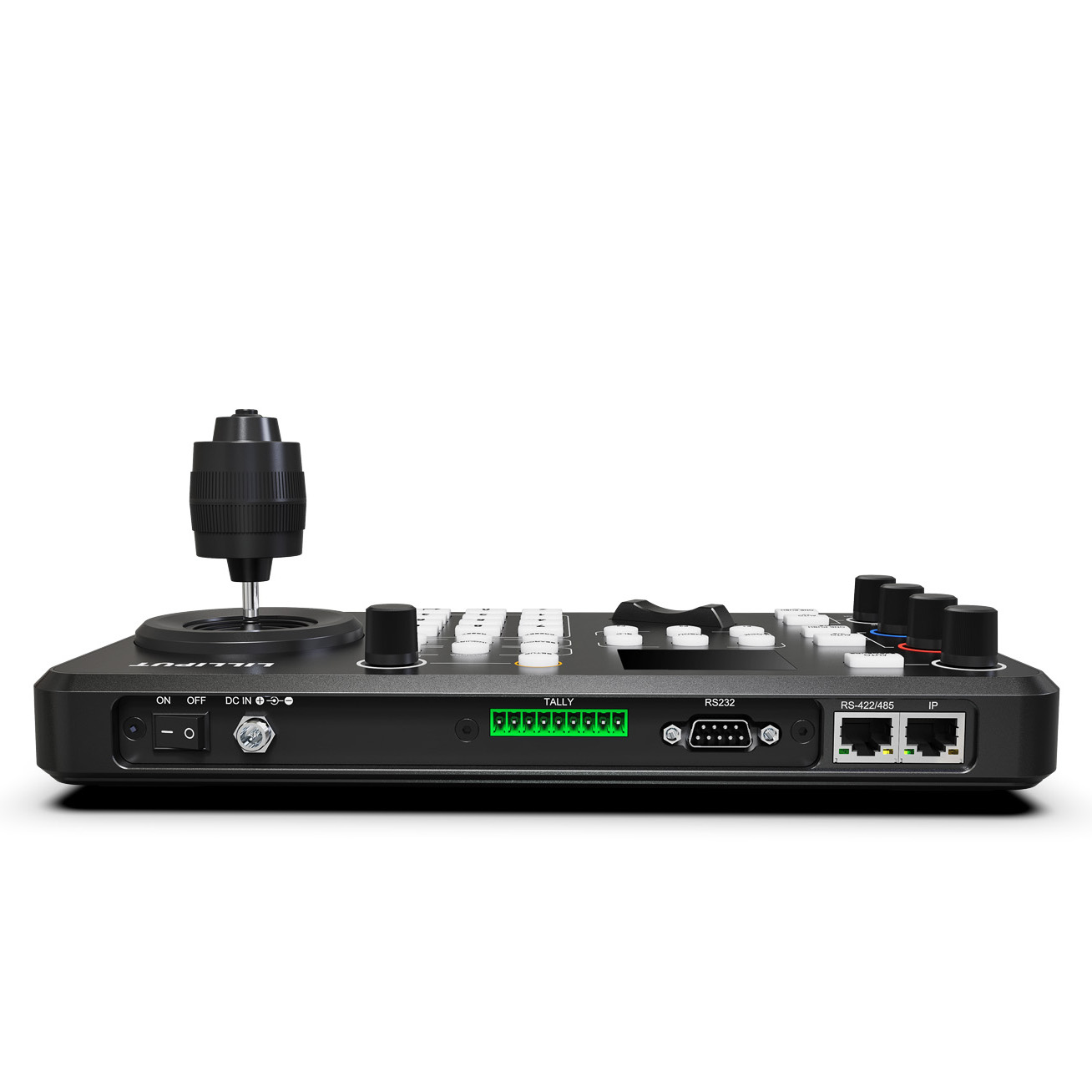

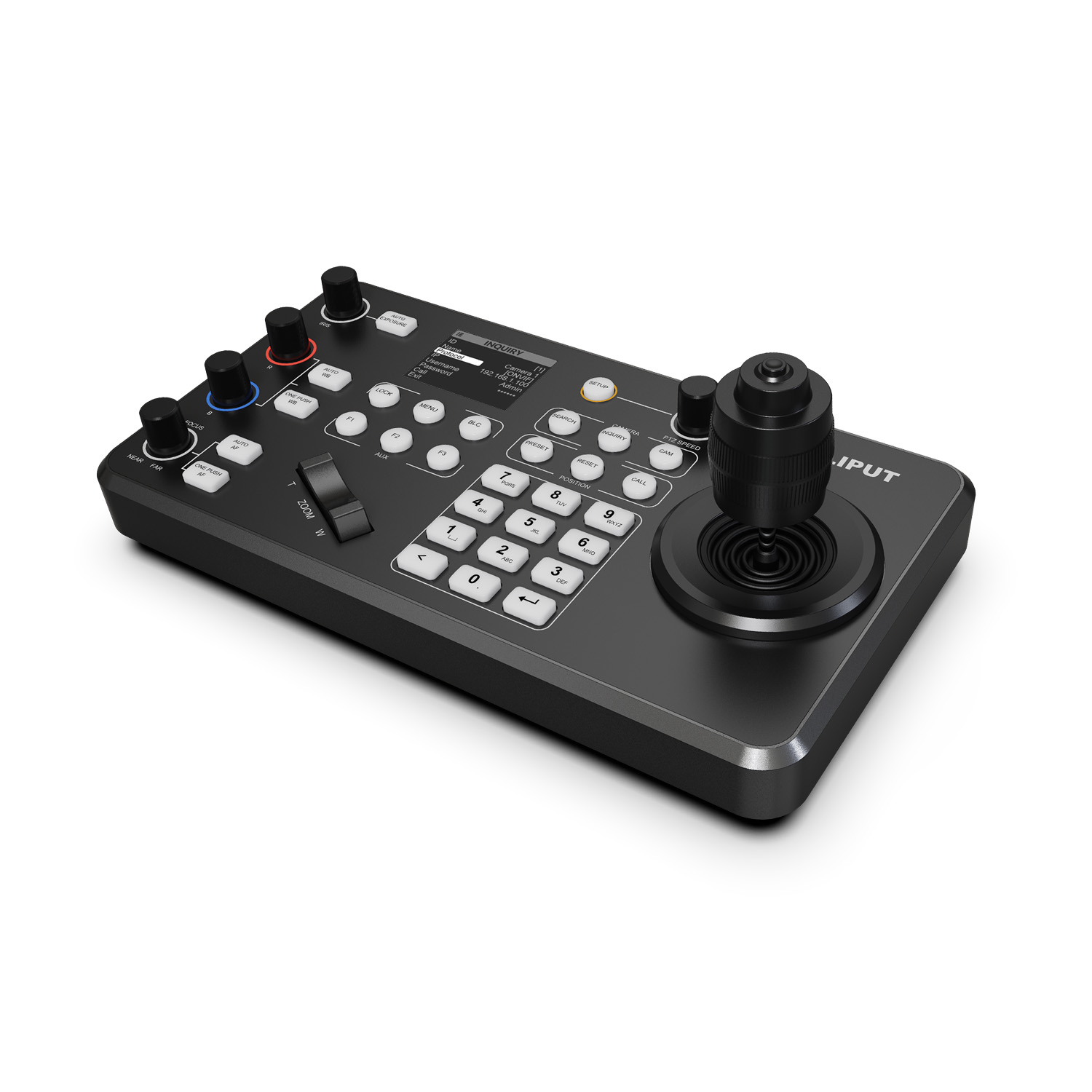

Lilliput K1 PTZ Camera Joystick Controller
€ 549,00 + VAT
– Cross protocol mix control with IP/ RS 422/ RS 485/ RS 232
– Control protocol by VISCA, VISCA Over IP, Onvif and Pelco P&D
– Control up to 255 IP cameras on one single network
– 3 camera quick call up keys, or 3 user assignable keys
– Tactile feel with professional rocker/seesaw switch for zoom controlling
– Auto search available IP cameras in one network and assign IP addresses easily
– Multi color key illumination indicator directs operation to specific functions
– Ally GPIO output for indicating the camera be currently controlled
– Aluminum alloy housing with 2.2 inch LCD display, joystick, 5 rotation button
– PoE and 12V DC power supplies
| CONNECTIONS | Interfaces | IP(RJ45), RS-232, RS-485/RS-422 |
| Control Protocol | IP Protocol: ONVIF, VISCA Over IP | |
| Serial Protocol: PELCO-D, PELCO-P, VISCA | ||
| USER INTERFACES |
Serial Baud Rate | 2400, 4800, 9600, 19200, 38400 bps |
| Display | 2.2 inch LCD | |
| Joystick | Pan/Tilt/Zoom | |
| Camera shortcut | 3 channels | |
| Keyboard | User-assignable keys×3, Lock×1, Menu×1, BLC×1, Rotation button×5,Rocker×1,Seesaw×1 | |
| Camera Address | Up to 255 | |
| Preset | Up to 255 | |
| POWER | Power | PoE/ DC 12V |
| Power Consumption | PoE: 5W, DC: 5W | |
| ENVIRONMENT | Working Temperature | -20°C~60°C |
| Storage Temperature | -40°C~80°C | |
| DIMENSION | Dimension(LWD) | 270mm×145mm×29.5mm/ 270mm×145mm×106.6mm(With joystick) |
| Weight | 1181g |
| Weight | 1181 g |
|---|
