Lilliput FA1016-NP/C – 10.1″ IPS HDMI monitor
€ 273,00 + VAT
The Lilliput FA1016-NP/C is a 10.1 inch 16:9 LCD monitor with HDMI and VGA video inputs. As our highest resolution HDMI 10″ monitor, it has a 1920 x 1200 pixel panel, and 1000:1 contrast ratio – allowing for the clearest image for installation into either an industrial or camera based
Looking for a monitor to use in a Teleprompter? No problem – this model features both X/Y Flip and Mirroring of the input image, making it an ideal tool for the job.
 |
| With full lamination technology you can see every detail in massive Full HD visual quality. The Lilliput FA1016-NP/C also features unique Glass+Glass (G+G, G&G) technology, creating a smooth appearance for its outer body. It facilitates the clearest view possible and allows for a bright, tidy visual experience in an industrial or low light environment. |
 |

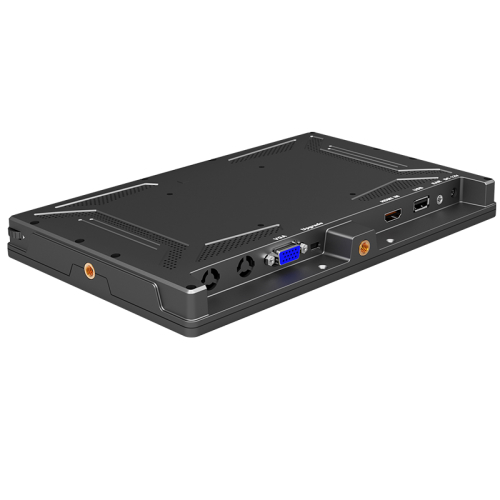

| HDMI+VGA Interfaces – The FA1016 is compatible with both HDMI and VGA signals, designed to be used with legacy VGA as well as current HDMI video input feeds. Perfect for Home Security systems, industrial machinery monitoring, and camera confidence monitoring. Wide Voltage Power – Features high level components to support 7 to 24V power supply voltage, allowing the monitor to be installed in more varied and different installation locations (PSV vehicles, trucks etc) |
 |
| Monitor Specification | |
| Screen Size (diagonal) | 10.1 inch |
| Aspect Ratio | 16:10 |
| Native Resolution | 1920 x 1200 (native) – 10.1″ 8 Bit IPS |
| Maximum Resolution | 1920×1080 (maximum) |
| Viewing Angle (degrees) | 170º x, 170º y |
| Brightness Ratio (cd/m2) | 320 |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Video Inputs | HDMI, VGA |
| Audio Outputs | Internal Speaker, Earphone Jack |
| Touchscreen Technology | None |
| Input Power | DV 7-24V (12V 1.5A DC Plug provided) |
| Operating Temperature | 0°c to +50° degrees |
| Mounting Options | VESA 75, ¼ inch BSW thread, vertical slot mount mechanism |
| Contents Of Box | |
| Product | 1 x FA1016-NP/C monitor |
| Connection Cables | 1x HDMI A-A cable, 1x VGA cable |
| Power Adaptor | 1x DC 12V plug (available in UK, US and EU style), |
| Mounts and stands | Gimbal Bracket (Optional) // VESA 75 Stand (Optional) |
| Dimensions | |
| Height (mm) | 157 |
| Width (mm) | 252 |
| Depth (mm) | 25 |
| Weight (g) | 560 |
| Environment | |
| Storage Temperature | -20°c to 60°c |
| Weight | 560 g |
|---|
