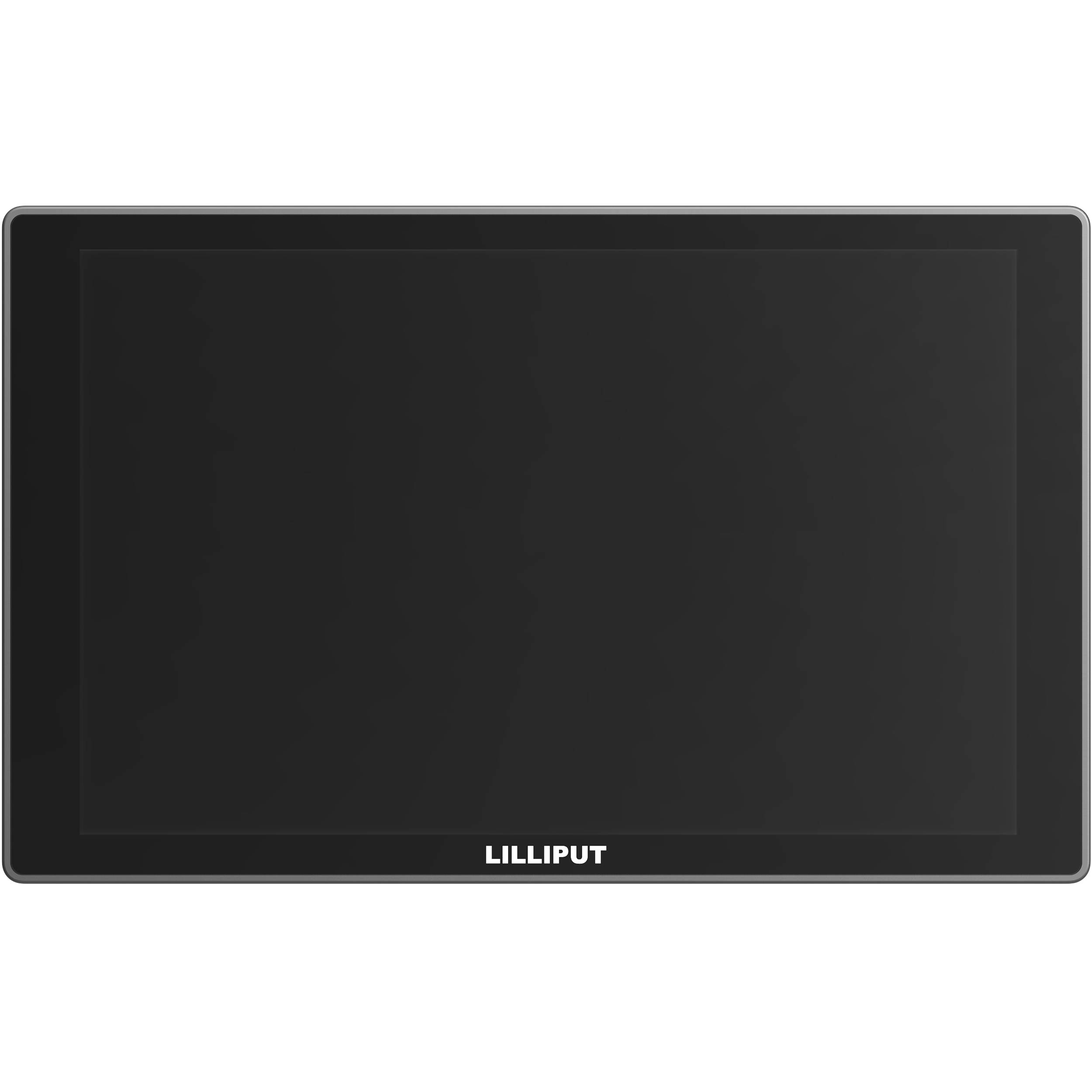

Lilliput FA1016-NP/C/T 10.1″ Class WUXGA Touchscreen IPS LCD Monitor

 299,00

+ additional shipping charge
  • Capacitive Touchscreen
  • WUXGA (1920 x 1200) Native Resolution
  • 320 nits Brightness
  • 1000:1 Contrast Ratio
  • HDMI & VGA Inputs
  • 1/8″ Headphone Output
  • Built-In Speaker
Category:

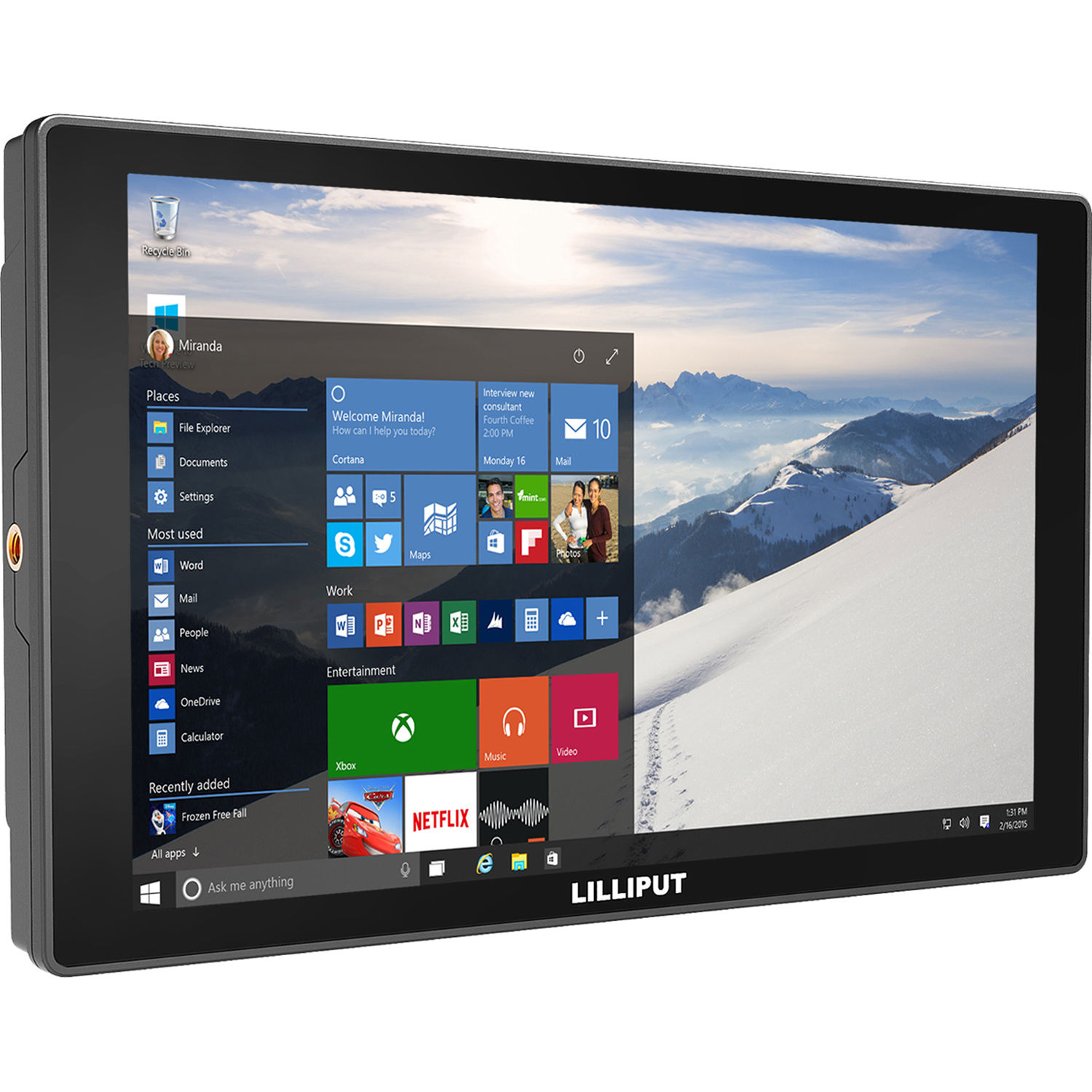

Add a touchscreen display to your system with the Lilliput FA1016-NP/C/T 10.1″ Class WUXGA Touchscreen IPS LCD Monitor. It has a native resolution of WUXGA 1920 x 1200 with support for signals up to 4K at 30 fps. With a brightness rating of 320 nits, a contrast ratio of 1000:1, and viewing angles up to 175°, colors should appear clear in most installation settings. The monitor is equipped with HDMI and VGA inputs, an 1/8″ headphone output, and a built-in speaker.

  • Supports 4K 30 Hz video inputs
  • Glass+Glass technology helps smooth the monitor’s appearance while retaining a wide 175° viewing angle
  • Full lamination design eliminates air bubbles between the glass layers
  • Dustproof front panel design
  • Suitable for use in commercial public display, industrial applications, and more
  • Supports 7 to 24V power supplies for use in a variety of applications
  • Designed for low power consumption
  • Works safely with low power currents
  • Engineered for ease of use

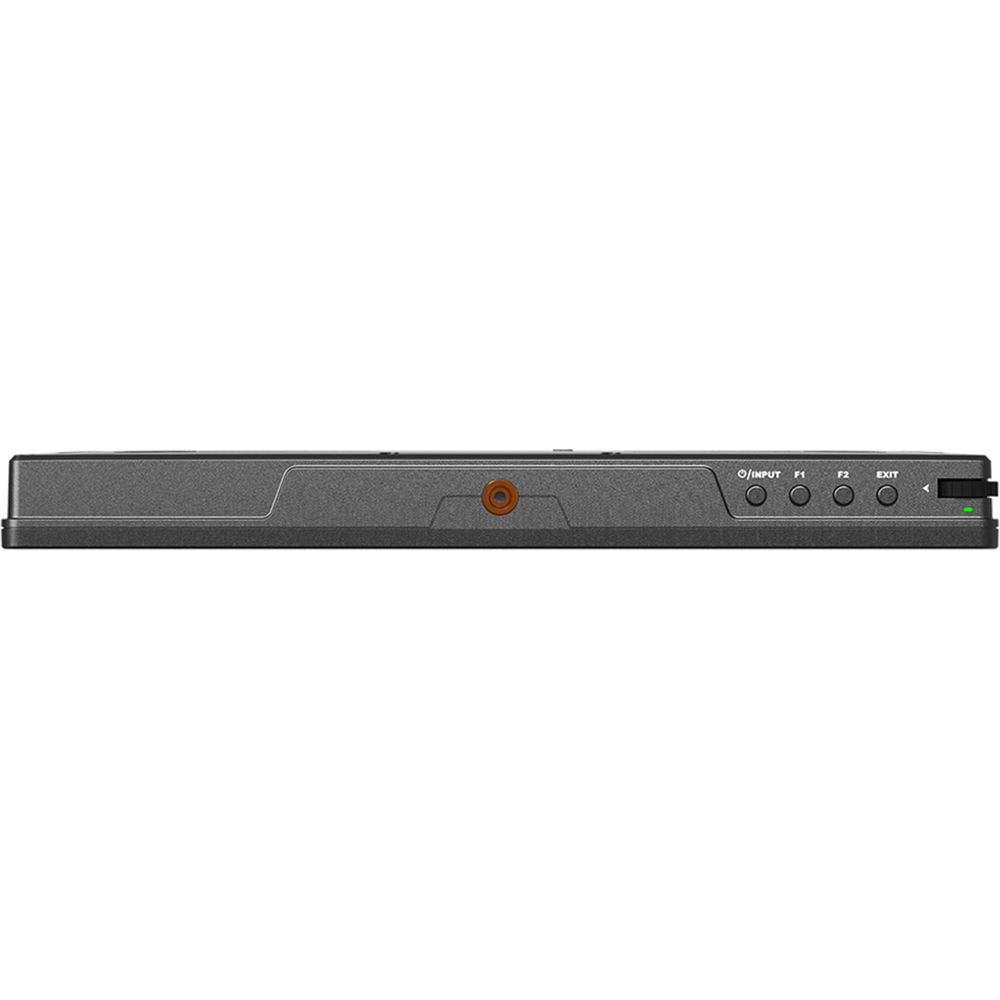

  • Two user-definable function buttons for quick shortcuts, such as scan, aspect, check field, zoom, freeze, etc.
  • Dial selection and adjustment of sharpness, saturation, tint, and volume
  • Input button doubles as a power button
  • Optional folding bracket available separately
Key Specs
Display Size
10.1″
Native Resolution
1920 x 1200
Maximum Brightness
320 nits / cd/m2
Touchscreen Technology
Capacitive

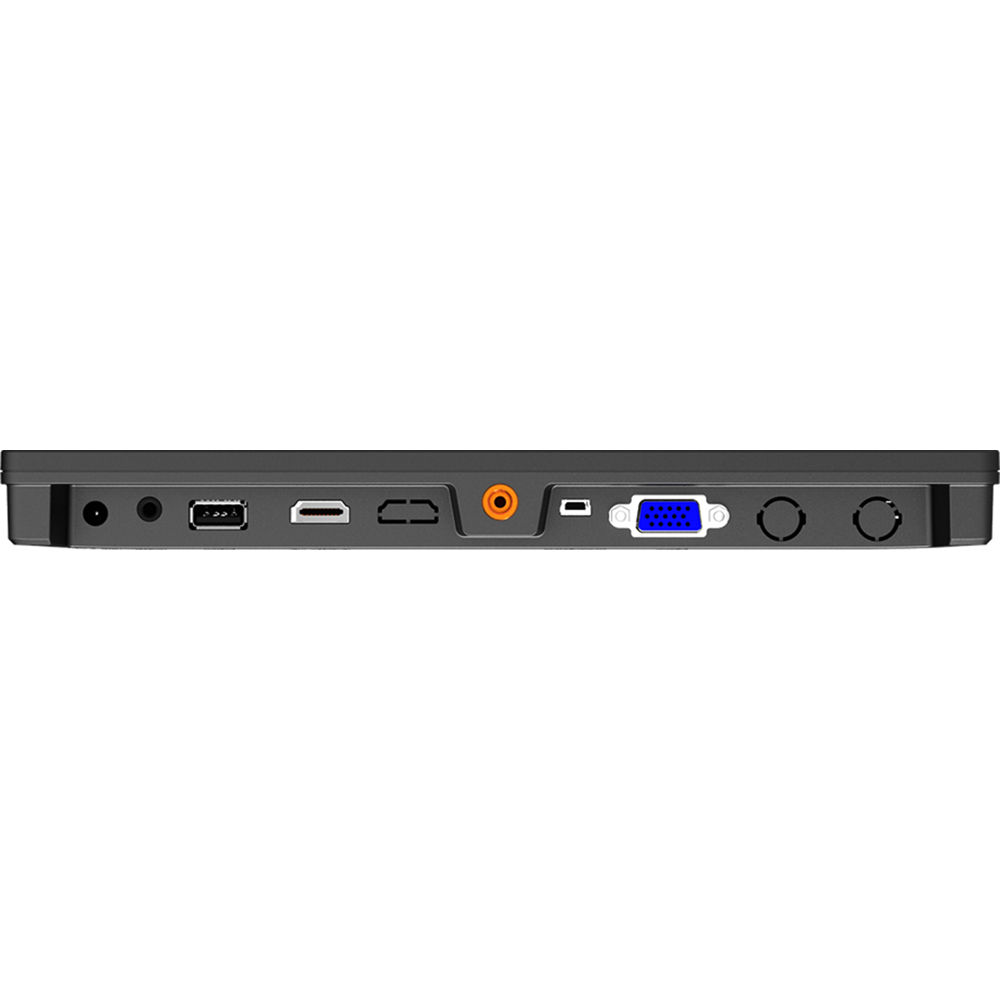

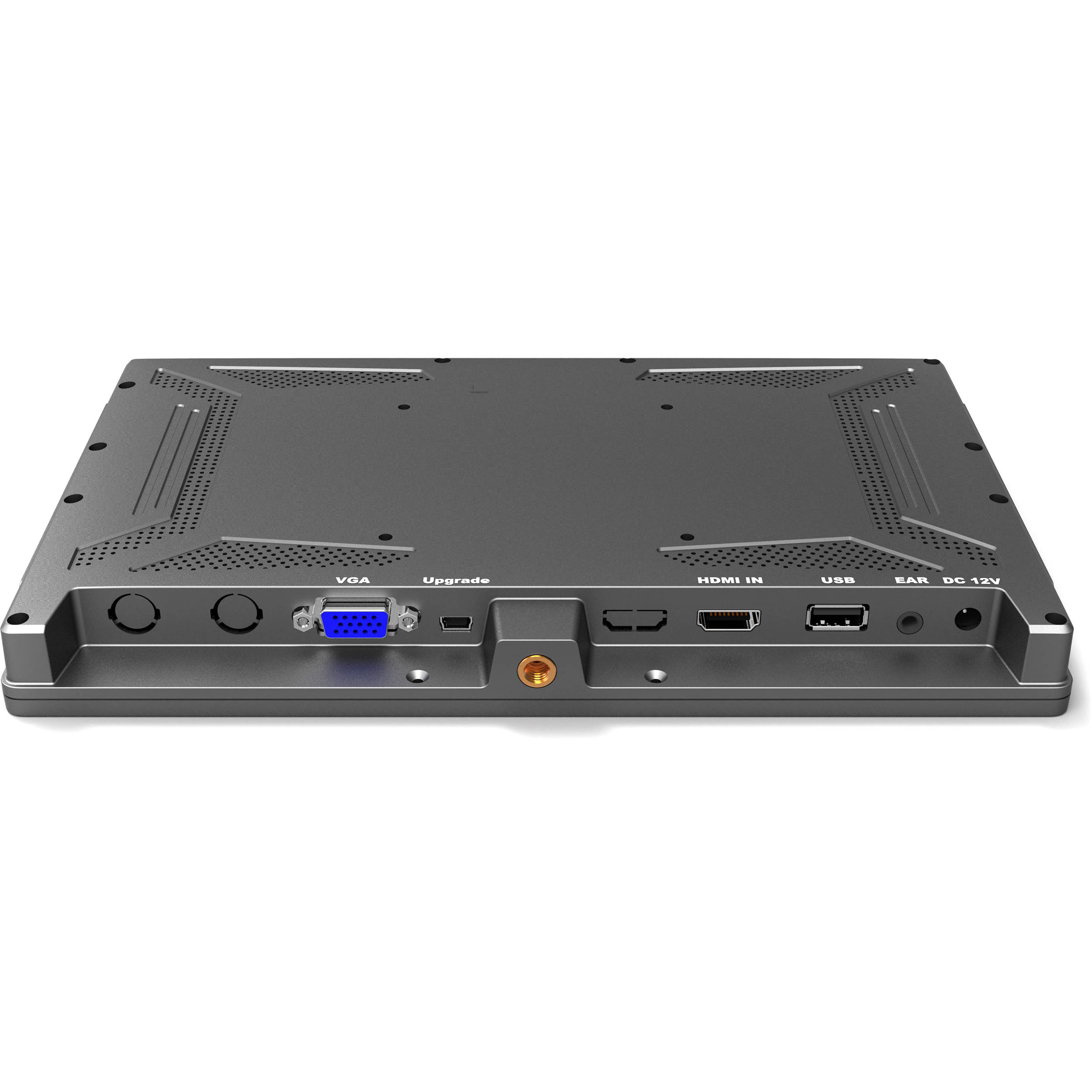

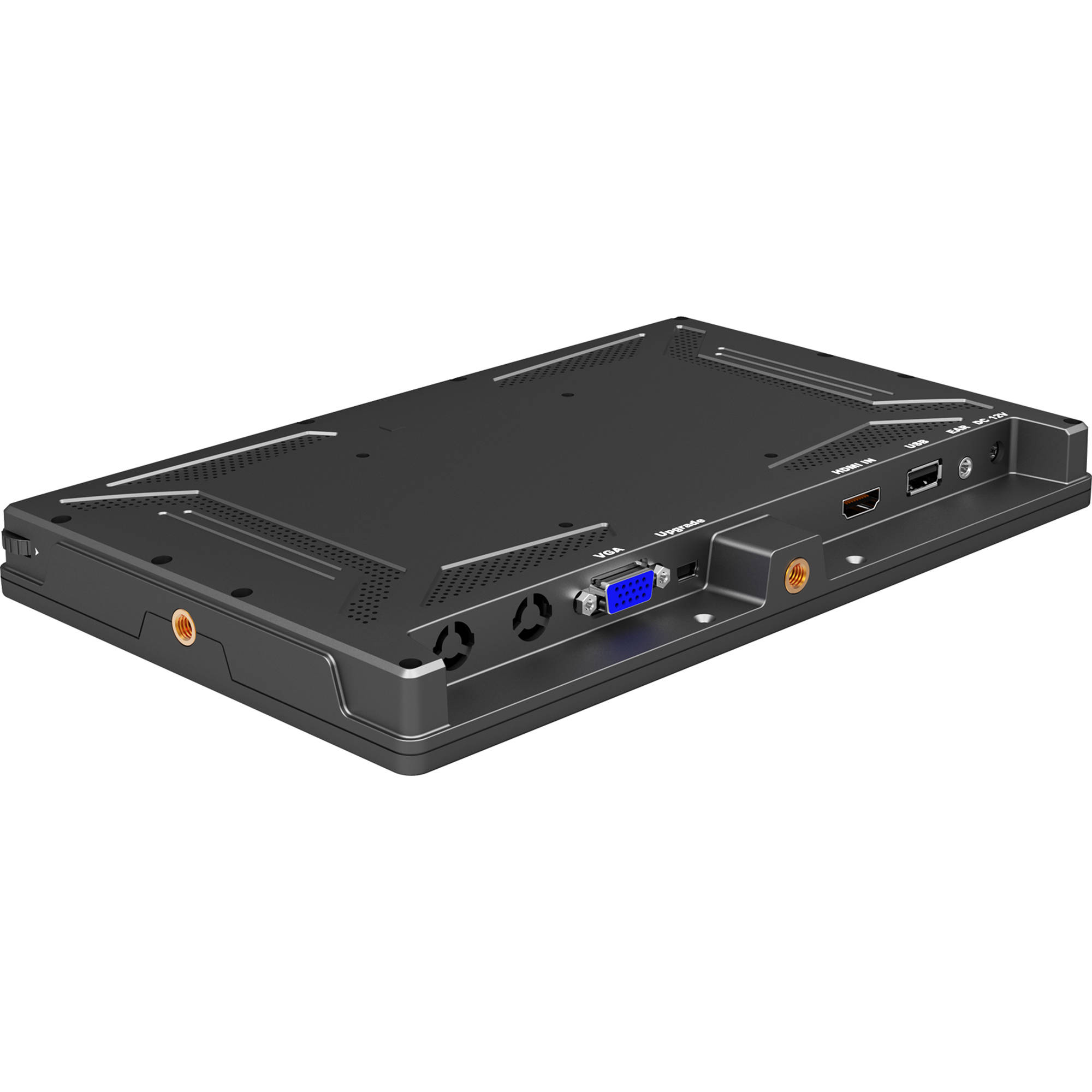

Inputs
Bottom:
1x HDMI
1x DE-15/DB-15 (VGA)
Outputs
Bottom:
1x 1/8″ / 3.5 mm (Analog Audio)
USB I/O
Bottom:
1x USB-A (Unspecified Version) (Touchscreen Control)
Ethernet I/O
No
Built-In Speakers
Yes, 1
Media Card Reader
No
Display
Display Size
10.1″
Panel Type
IPS-Type LCD
Aspect Ratio
16:10
Native Resolution
1920 x 1200
Maximum Brightness
320 nits / cd/m2
Contrast Ratio
1000:1
Color Support
16.7 Million Colors (8-Bit)
Viewing Angle (H x V)
175 x 175°
Surface
Touchscreen Technology
Capacitive
Video
TV Tuner
No
Connectivity
Inputs
Bottom:
1x HDMI
1x DE-15/DB-15 (VGA)
Outputs
Bottom:
1x 1/8″ / 3.5 mm (Analog Audio)
USB I/O
Bottom:
1x USB-A (Unspecified Version) (Touchscreen Control)
Ethernet I/O
No
Speaker
Built-In Speakers
Yes, 1
Speaker Configuration
1-Channel
Hardware
Media Card Reader
No
Environmental
Operating Temperature
32 to 82°F / 0 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Electrical
Power Consumption
Operational: 10.0 W
Input Power
7 to 24 VDC
12 VDC at 750 mA
General

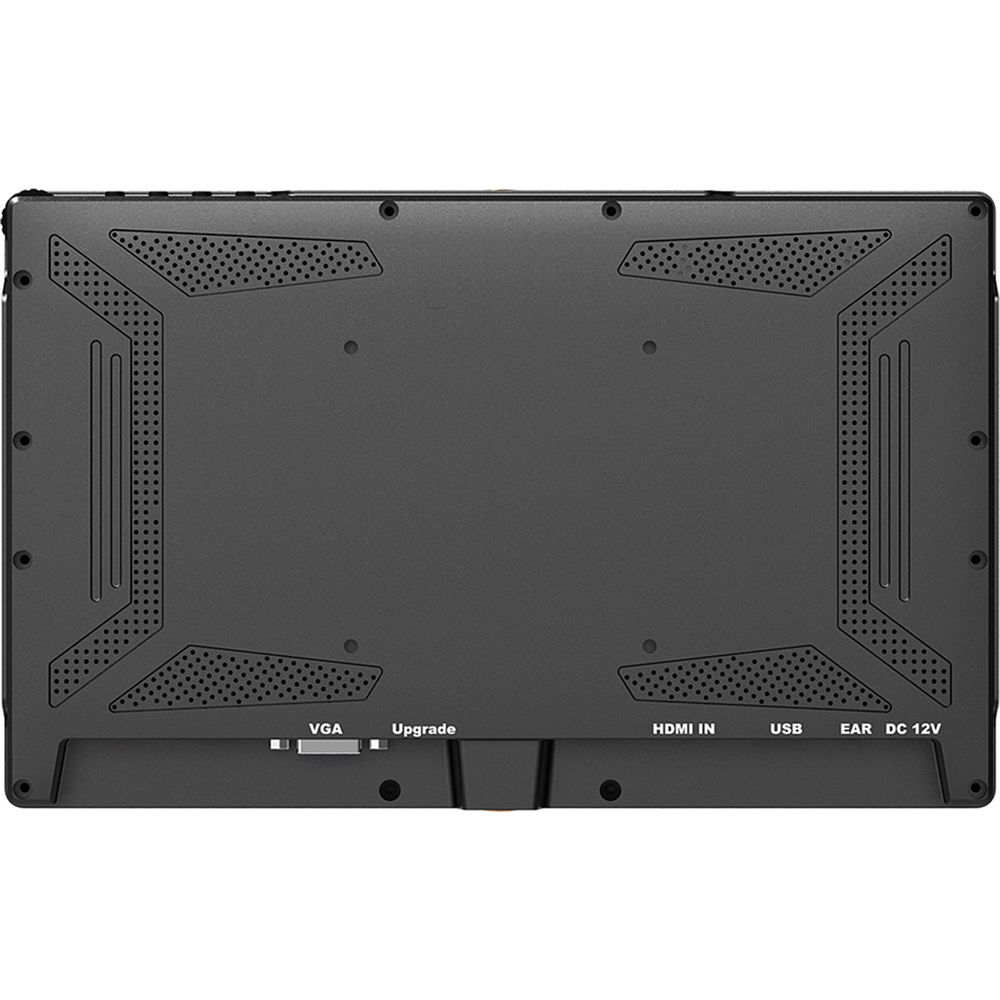

Mounting-Hole Pattern
75 x 75 mm
Dimensions
9.9 x 6.2 x 1″ / 252 x 157 x 25 mm
Weight
1.18 lb / 535 g
Packaging Info
Package Weight
3.74 lb  / 1697 g
Box Dimensions (LxWxH)
10.8 x 7.1 x 4.5″
Weight 1697 g
