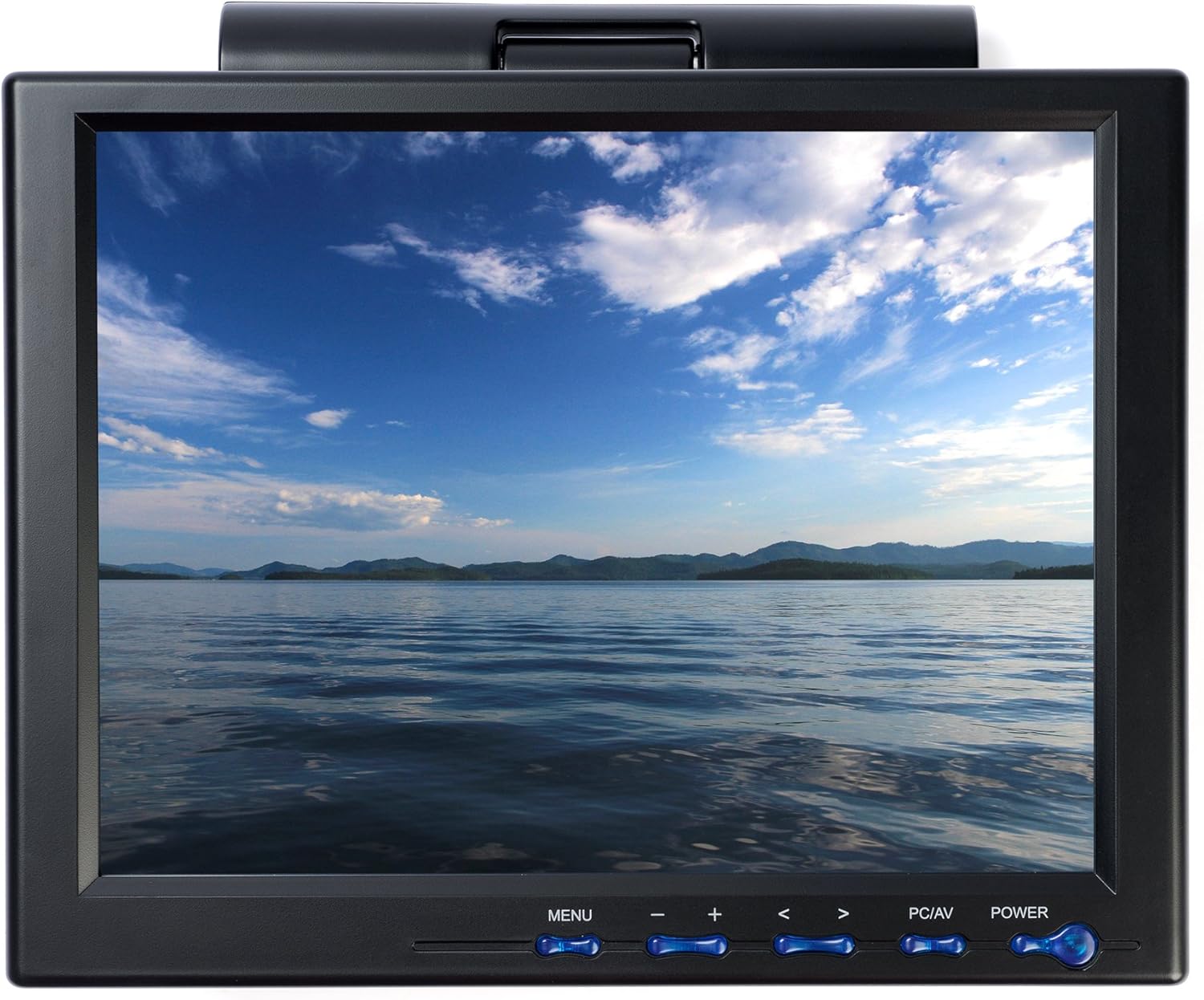

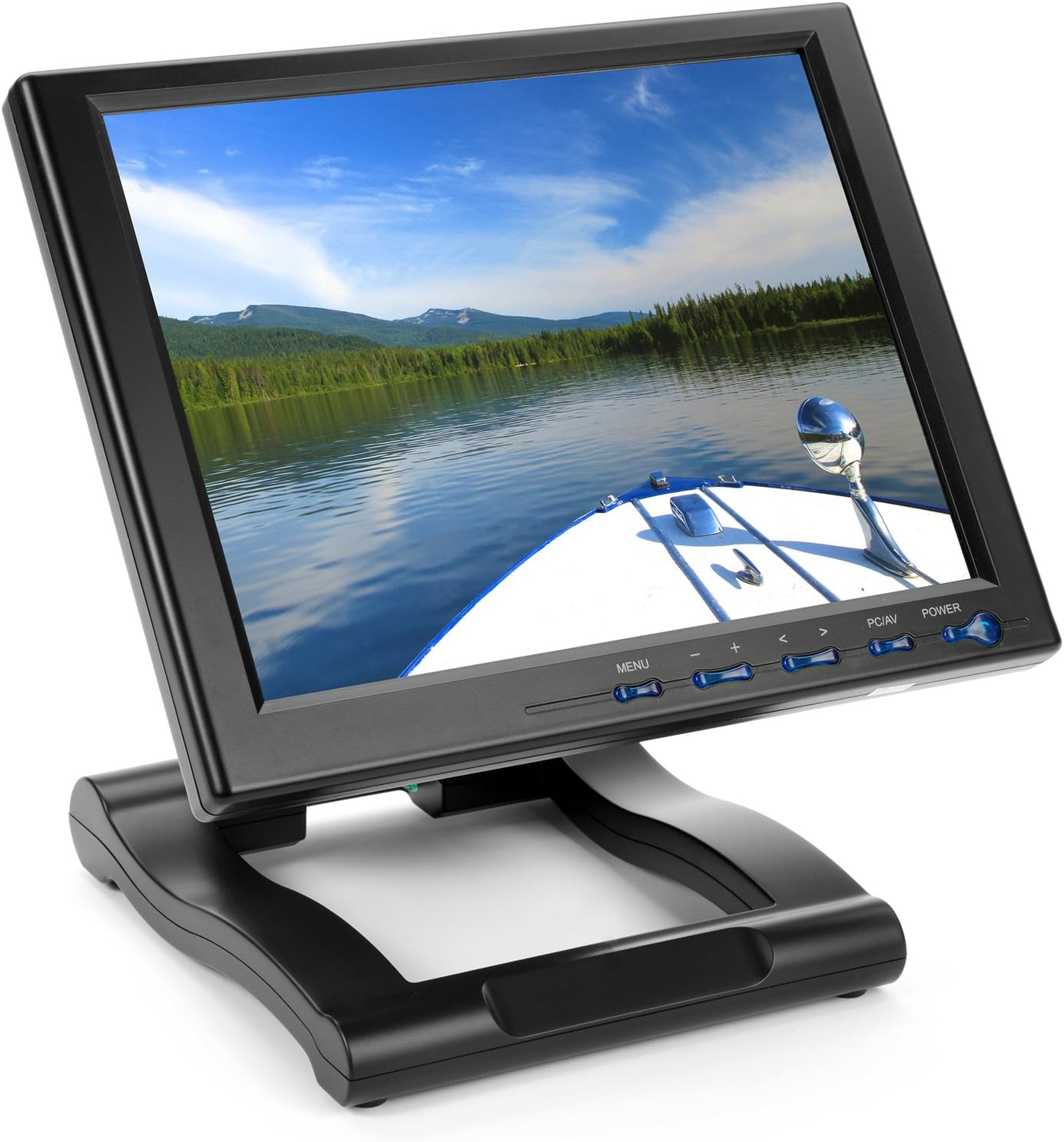

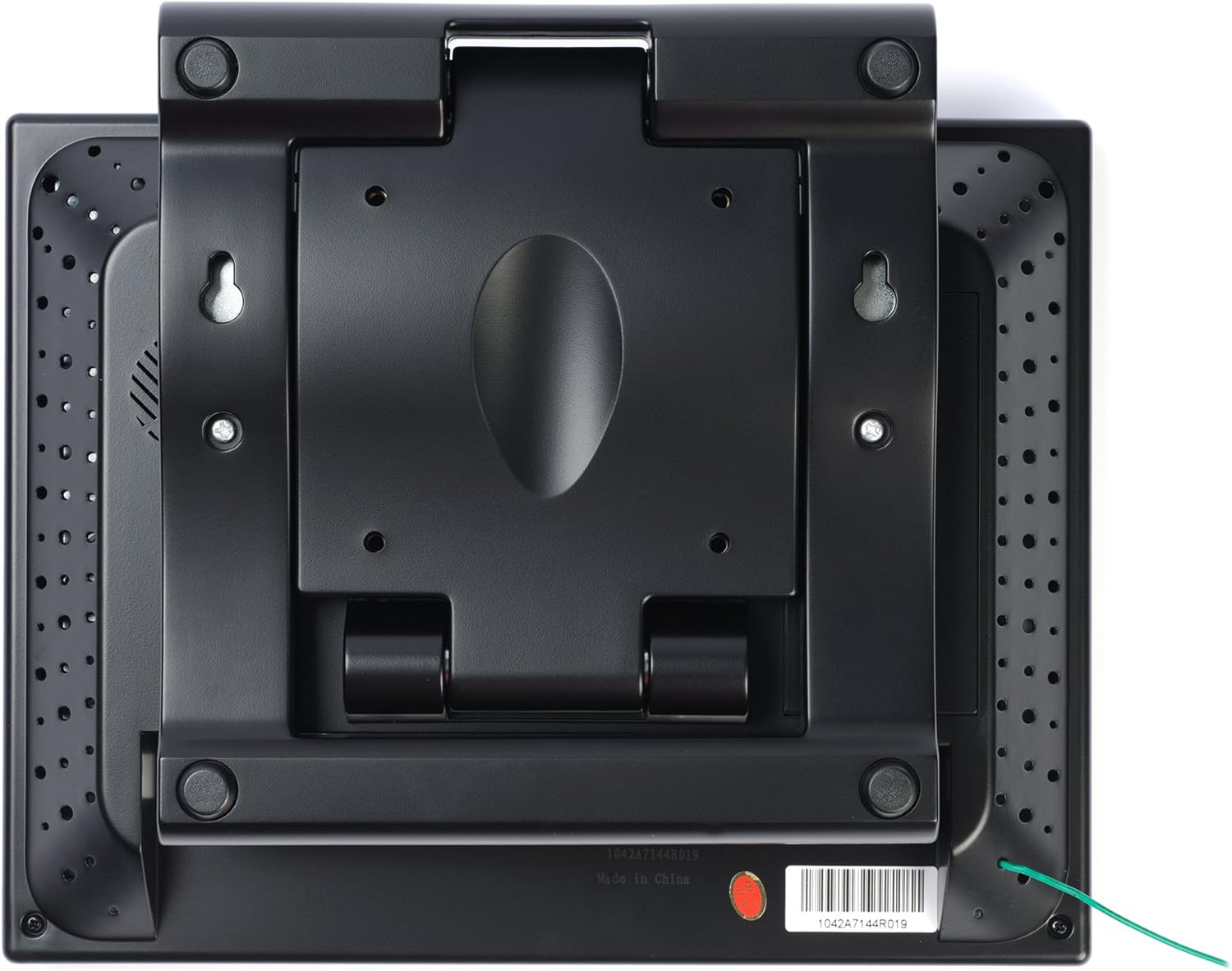

Lilliput FA1042-NP/C/T – 10″ VGA touchscreen monitor
€ 220,00 + VAT
Lilliput’s FA1042-NP/C/T is a great value 10″ monitor featuring a 4 wire resistive touch screen for integration into Windows and Linux systems. It includes a foldable desktop stand (easily removable) and both VGA and composite video inputs. This 10″ monitor is the perfect size for many customers who are limited on space and looking for a monitor that is smaller than a typical desktop PC monitor, but larger than Lilliput’s smaller footprint monitors.
| Monitor Specification | |
| Screen Size (diagonal) | 10″ |
| Touchscreen Technology | 4 Wire Resistive |
| Aspect Ratio | 4:3 |
| Native Resolution | 800×600 (native) |
| Maximum Resolution | 1280×1024 (maximum) |
| Pixel Pitch (mm) | 0.0635×0.190 |
| Scan Frequency (Hz) | 60-72 |
| Response Time (ms) | 25 |
| Viewing Angle (degrees) | 160º x, 160º y |
| Brightness Ratio (cd/m2) | 300 |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Video Inputs | VGA, composite |
| Audio Outputs | >=100mV |
| Input Power | DC 12V |
| Operating Temperature | -20°c to 60°c |
| Mounting Options | Desktop Stand |

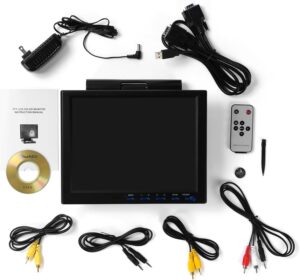

| Contents Of Box | |
| Product | 1x FA1042-NP/C |
| Connection Cables | 2x Composite cable, 1x VGA and USB touch screen cable |
| Power Adaptor | 1x 3-pin DC 12V plug |
| Dimensions | |
| Height (mm) | 216mm (folded) // 267mm (unfolded) |
| Width (mm) | 252mm |
| Depth (mm) | 73mm (folded) // 183mm (unfolded) |
| Weight (g) | 1500 |
| Weight | 1500 g |
|---|
