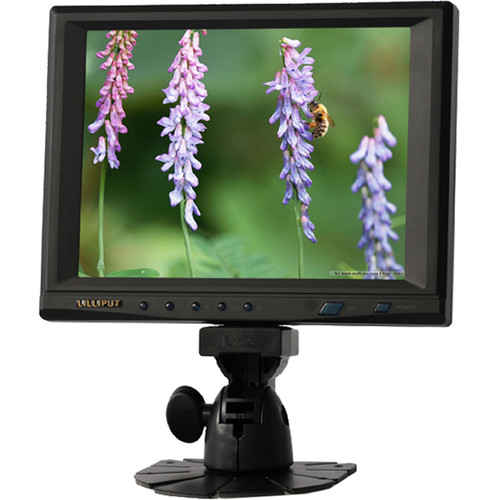

Lilliput FA801-NP/C – 8″ VGA monitor
€ 138,00 + VAT
Lilliput’s FA801-NP/C is a great value 8″ VGA monitor and is hugely popular amongst customers looking for simple, low footprint touch screen terminals. Featuring a foldable desktop stand (which can be removed) this monitor is popularly installed in lecture theatres, remote viewing locations and among automation integrators.
| Monitor Specification | |
| Screen Size (diagonal) | 8″ |
| Aspect Ratio | 4:3 |
| Native Resolution | 800×600 (native) |
| Pixel Pitch (mm) | 0.0635×0.190 |
| Scan Frequency (Hz) | 60 – 72 Hz |
| Response Time (ms) | 15 |
| Viewing Angle (degrees) | 140º x, 120º y |
| Brightness Ratio (cd/m2) | 350 |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Video Inputs | VGA, Composite |
| Audio Outputs | >100mV |
| Input Power | 12V |
| Operating Temperature | -20°c – 60°c |
| Mounting Options | Desktop Stand |
| Contents Of Box | |
| Connection Cables | 2x Composite cable, 1x VGA cable |
| Power Adaptor | 1x 3-pin DC 12V plug |
| Dimensions | |
| Height (mm) | 150mm (folded) // 180mm (unfolded) |
| Width (mm) | 205mm |
| Depth (mm) | 67mm (folded) // 210mm (unfolded) |
| Weight (g) | 1200 |
| Weight | 1200 g |
|---|
