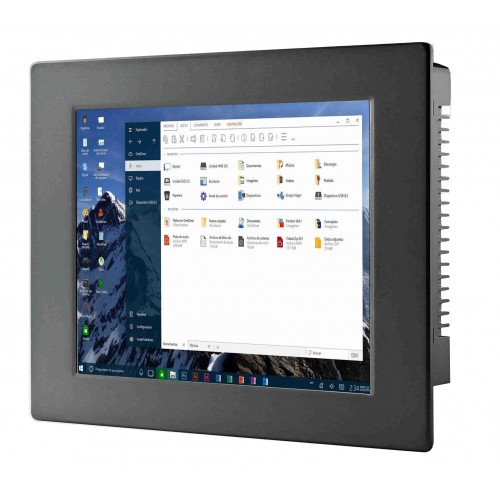

Lilliput PC-1201 - 12" inch Panel PC
€ 749,00 + VAT
Lilliput PC-1501 - 15" inch Panel PC
€ 779,00 + VAT

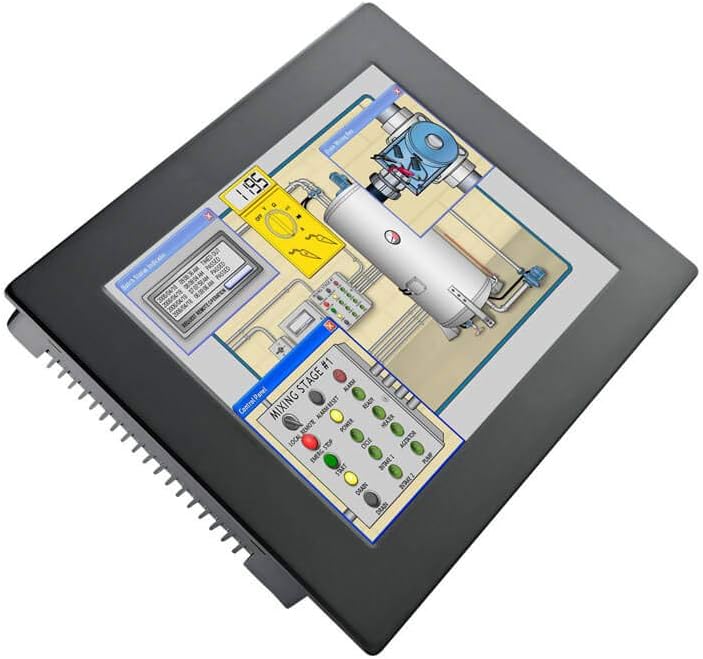

Lilliput PC-1202 – 12″ inch Panel PC with Intel i5 processor
€ 799,00 + VAT
The PC1202 is a 12″ panel PC with an Intel i5-430UM Processor compatible with Windows 7 and Windows 10. Sporting a 5 wire touchscreen and multiple mounting options, the PC1202 is ideal for industrial applications including process control, entry admission, vehicle tracking / ticketing systems and industrial weighing.
Description
 |
 |
| Panel PC Specifications | |
| Processor | Intel Core i5-430UM (3M Cache, 1.20Ghz) |
| RAM Memory | 4G DDR3 |
| Internal Storage | 32GB Internal SSD mSATA – upgradeable to 512Gb (optional) |
| Graphics | Integrated |
| Optical Drive | None (external USB optional) |
| Networking | 10/100 LAN |

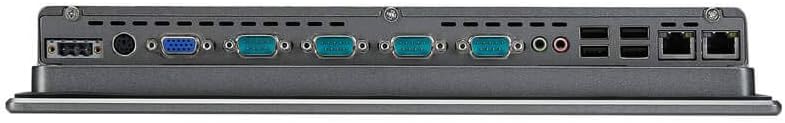

| I/O Connections (additional) | USB 2.0 Port x 4 – Headphone Jack – DC Power Input – RS232 x 4/RS485 x 4 – LAN – |
| Chassis | Aluminium outer chassis |
| Screen Size (diagonal) | 12 inch |
| Aspect Ratio | 4:3 |
| Touchscreen Technology | 5 wire resistive |
| Software Installed | None Installed (Windows 7, 8, 10 optional) |
| Input Power | 12V |
| Mounting Options | VESA 75, Front Mount clips |
| Contents Of Box | |
| Product | PC1202 Panel PC |
| Connection Cables | PS2 Adpator cables |
| Power Adaptor | 12V Power Adaptor (UK, EU and US fittings available) |
| Mounts and stands | Rear mounting bracket (optional) |
| Additional accessories | Driver disk and touchscreen Software |
| Dimensions | |
| Height (mm) | 263 |
| Width (mm) | 340 |
| Depth (mm) | 48 |
| Weight (g) | 3.84 kg |
|
Customisation Options Are Available
You can customise RAM, hard drive and operating system with the PC-1202 please contact us via the link Here
Intel Atom D525 processor
The PC1202 is fitted with the industrial standard Atom D525 processor, a superbly reliable processor that runs at low heat production but remaining high power for processor heavy applications.
Aluminium alloy frame
The PC1202 has a lightweight aluminum alloy comprising it’s frame, giving it the strength to endure while still remaining lightweight for portable operations.
Built for industry
The PC1202 is a system designed around the industrial market, with it’s metal outer frame, and 5 wire touchscreen – this system is reliable and tough at a fraction of the price of other industrial standard panel.
5 Wire resistive touchscreen
With a 5 wire resistive touchscreen the PC1202 is able to stand greater amounts of use without failing.
Multiple mounting options

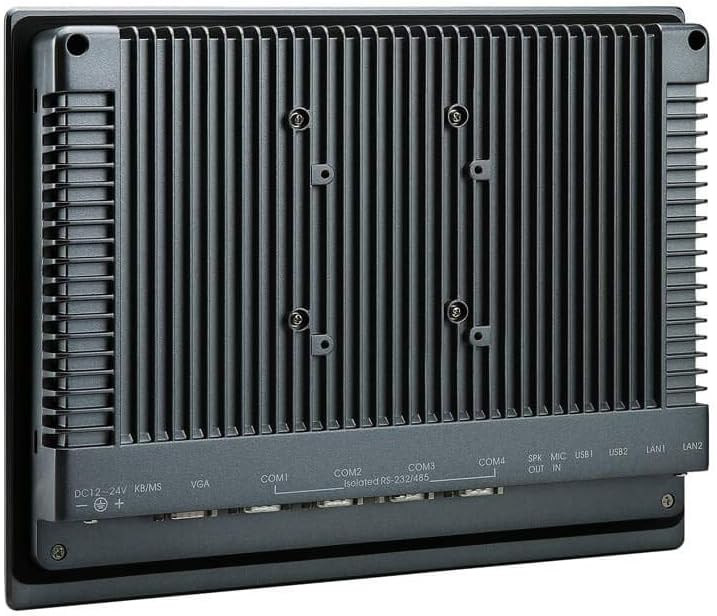

The PC1202 can be mounted in a variety of ways – using the VESA mounting on the rear of the unit or flushmount the system using the front mounting clips. Also available – our rackmount mounting kits let you fit PC1202 into your rack system for server management you can count on.
Additional information
| Weight | 3840 g |
|---|
