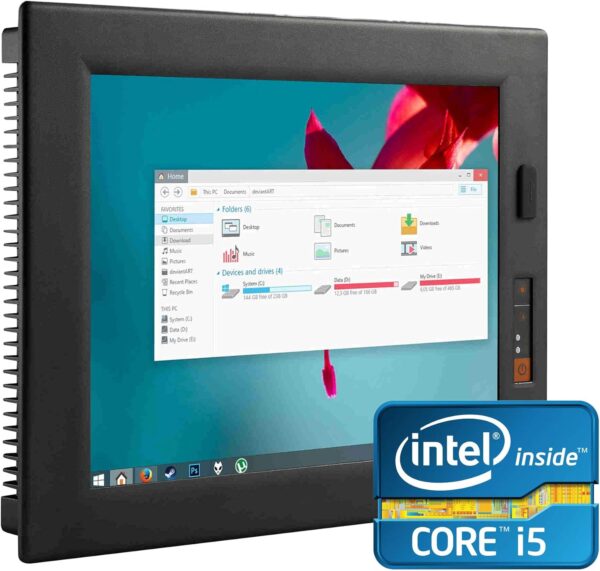

Lilliput PC-1202 - 12" inch Panel PC with Intel i5 processor
€ 799,00 + VAT
Lilliput PC-1502 - 15" inch Panel PC with Intel i5 processor
€ 1.021,00 + VAT
Lilliput PC-1501 – 15″ inch Panel PC
€ 779,00 + VAT

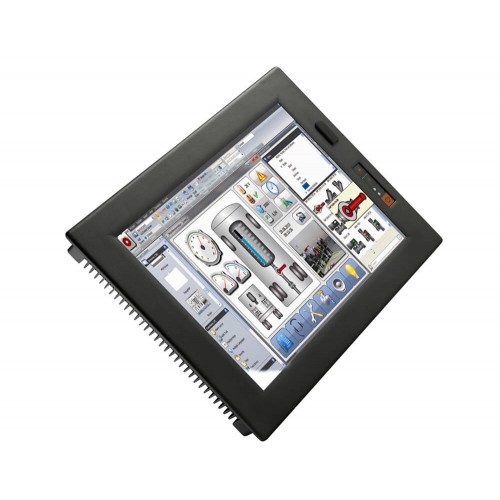

The PC1501 is a 15″ Panel PC with an Intel Atom D525 processor compatible with Windows 7 and Windows 10. Supporting a 5 wire touchscreen for additional stability and multiple mounting options, the PC1501 is ideal for industrial applications.
Description
Customisation Options Are Available
You can customise RAM, hard drive and operating system with the PC-1501 please contact us via the link Here
Intel Atom D525 processor
The PC1501 is fitted with the industrial standard Atom D525 processor, a superbly reliable processor that runs at low heat production but remaining high power for processor heavy applications.
Aluminium alloy frame
The PC1501 has a lightweight aluminum alloy comprising it’s frame, giving it the strength to endure while still remaining lightweight for portable operations.
Built for industry
The PC1501 is a system designed around the industrial market, with it’s metal outer frame, and 5 wire touchscreen – this system is reliable and tough at a fraction of the price of other industrial standard panel.
5 Wire resistive touchscreen
With a 5 wire resistive touchscreen the PC1501 is able to stand greater amounts of use without failing.
Multiple mounting options

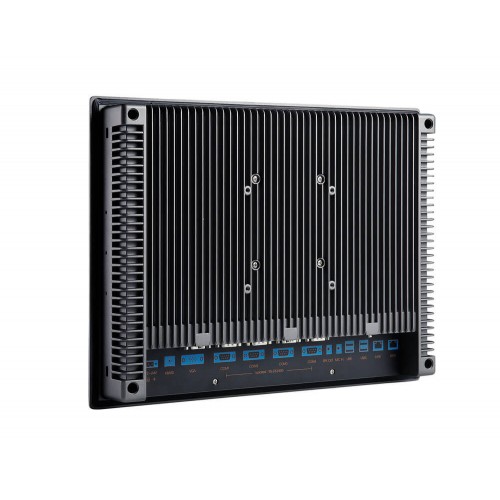

The PC1501 can be mounted in a variety of ways – using the VESA mounting on the rear of the unit or flushmount the system using the front mounting clips. Also available – our rackmount mounting kits let you fit PC1501 into your rack system for server management you can count on.
| Panel PC Specifications | |
| Processor | Intel D525 Processor 1.8Ghz |
| RAM Memory | 2G DDR3 |
| Internal Storage | 32GB Internal SSD mSATA – upgradeable to 512Gb (optional) |
| Graphics | Integrated |
| Optical Drive | None (external USB optional) |
| Networking | 10/100 LAN |

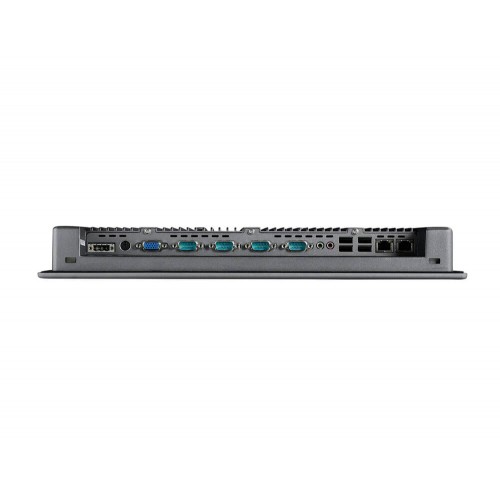

| I/O Connections (additional) | USB 2.0 Port x 5 – Headphone Jack – DC Power Input – RS232 x 4/RS485 x 4 – LAN x 2 – |
| Chassis | Aluminium outer chassis |
| Screen Size (diagonal) | 15 inch |
| Aspect Ratio | 4:3 |
| Touchscreen Technology | 5 wire resistive |
| Software Installed | None Intalled (Windows 7, 8, 10 optional) |
| Input Power | 12V |
| Mounting Options | VESA 75, Front Mount clips |
| Contents Of Box | |
| Product | PC1501 Panel PC |
| Connection Cables | PS2 Adaptor cables |
| Power Adaptor | 12V Power Adaptor (UK, EU and US fittings available) |
| Mounts and stands | Rear mounting bracket (optional) |
| Additional accessories | Driver disk and touchscreen Software |
| Dimensions | |
| Height (mm) | 310 |
| Width (mm) | 396 |
| Depth (mm) | 52 |
| Weight (g) | 4.6 kg |
Additional information
| Weight | 4600 g |
|---|
