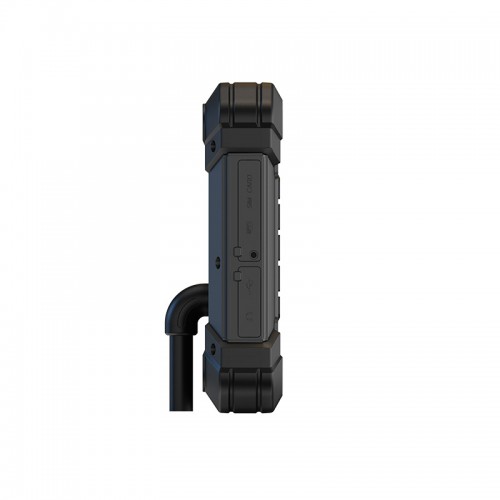

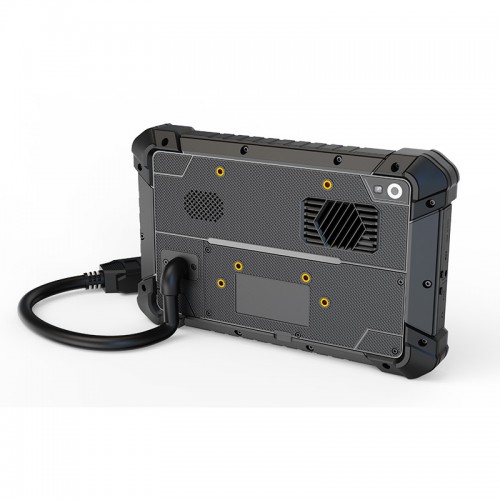

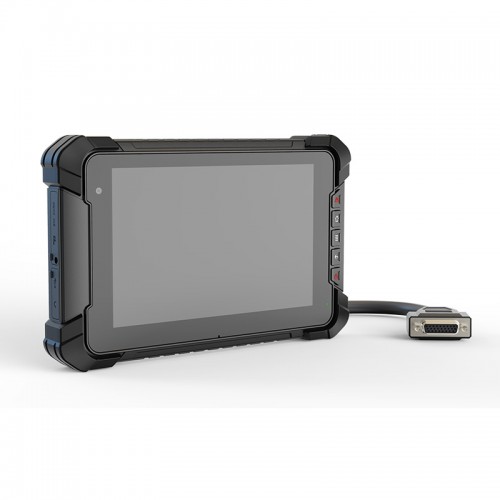

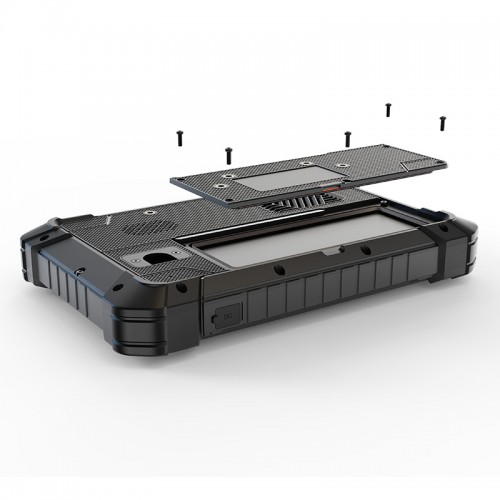

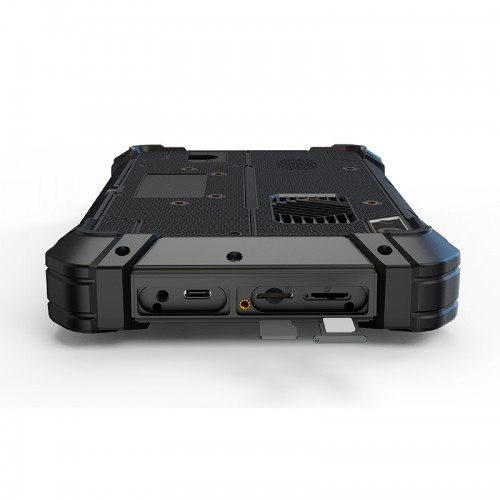

Lilliput PC-7108 – IP67 Rugged 7″ Android / Linux Tablet PC
€ 999,00 + VAT
The Lilliput PC-7108 tablet combines advanced computing power with an IP67 rating and a 7” hardened display to provide a modular solution, enabling easy customization and simplified upgrading.
With a multitude of built in sensors (gyroscopic, proximity, accelerometer, and light), it is designed to be at home monitoring and controlling processes in fleet vehicles or in industrial processes. Meeting the highest of stability standards, the PC-7108 can work in the toughest of environments.
Description
 |
 |
 |
 |
 |
 |
 |
| Panel PC Specifications | |
| Camera | Optional, 5.0MP (Front) |
| Operating System | Android 9.0 / Linux Debian 10 |
| Sensors | NFC, Accelerometer, Light Sensor, Gyroscope, Compass, Proximity (all are optional extras) |
| Processor | NXP i. MX 8M Mini, ARM® Cortex®-A53 Quad-Core 1.6GHz processor |
| RAM Memory | 2GB LPDDR4+16GB Flash or 4GB LPDDR4+64GB Flash are optional |
| Graphics | 3D GPU (1 × shader, OpenGL® ES 2.0), 2D GPU |
| Media | Nano SIM Card : MicroSD Slot |
| Networking | LAN – 1000M : Wifi – Optional,IEEE 802.11 a/b/g/n/ac; 2.4GHz / 5GHz |
| I/O Connections (additional) | GPIO – × 8 (Software freely define input and output) : COM – RS232 × 4; or RS232 × 3 + RS485/RS422 × 1; |
| Cellular Connectivity | Optional, 3G / 4G |
| Resolution | 7 inch IPS, 1280 × 800 resolution, 800 nit |
| Touchscreen Technology | Capacitive touch screen |
| Common Parameters | |
| Dimension | 221 x 139.7 x 29.5 mm |
| Power | DC 9-36V (ISO 7637-II compliant) / DC 11-36V with Optional built-in battery (3500mAH) |
| Storage Temperature (°c) | -20°C ~ 70°C (-4°F ~ 158°F) |
| Weight (g) | 910g |
| Environment | |
| IP Rating | Dust resistance test: IP6x : Water resistance test: IPx7 : |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
Additional information
| Weight | 910 g |
|---|
