Lilliput PC-765 – 7″ panel PC with 600MHz processor
€ 320,00 + VAT
The Lilliput PC765 is a solid, dependable 7″ Panel PC system which runs on Windows CE 5.0. With a Ti OMAP 3525 600MHZ Processor, and the facility to install Windows CE or Linux 2.6.32 it is a robust system with the ability to run many industrial programs and dedicated applications
| Panel PC Specifications | |
| Processor | TI OMAP3525 600 MHz Processor – ARM Cortex A8 |
| RAM Memory | 256Mb Flash ROM |
| Storage | SD Card Slot (Supports up to 8GB Card) |
| Networking | LAN Ethernet 10/100M (RJ45) |
| I/O Connections (additional) | Earphone Slot, Speaker, SD Card Slot |
| Chassis | Plastic / Metal |
| Screen Size (diagonal) | 7″ LCD Panel |
| Aspect Ratio | 16:9 |
| Touchscreen Technology | 4 Wire Resistive Touch Technology |
| Software Installed | Windows CE 6.0 / Linux 2.6.32 |
| Input Power | DC 9-24V |
| Contents Of Box | |
| Product | PC765 |

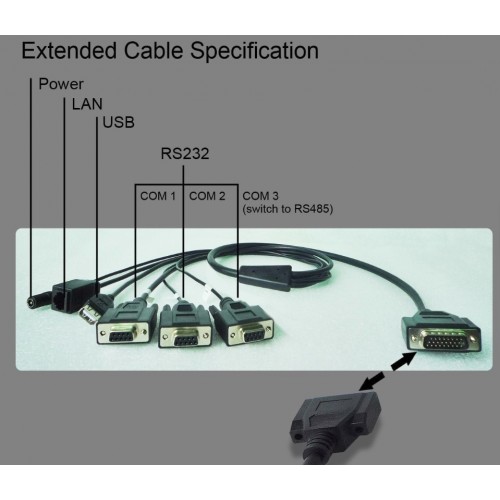

| Connection Cables | Unified Cable with LAN, Power, USB, RS232 for COM 1 and COM2, RS485 for COM 3 |
| Power Adaptor | 9-24V Power Supply |

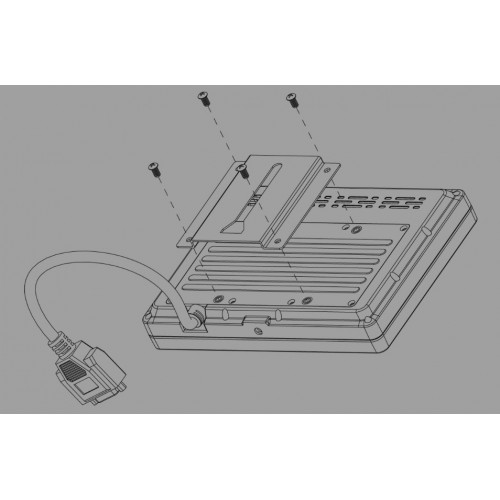

| Mounts and stands | VESA 75 Mounting Holes, Optional VESA 75 Slot Rail, 1/4″ BSW Threaded Mounting Hole |
| Additional accessories | Extended Cable, PSU Adaptor, Manual, CD Drive (Optional), VESA 75 Rail Slot (Optional) |
| Dimensions | |
| Height (mm) | 146 |
| Width (mm) | 198 |
| Depth (mm) | 35 |
| Weight (g) | 740g |
| Weight | 740 g |
|---|
