Lilliput PC-9715 – 9.7″ IP 64 Rated Panel PC
€ 499,00 + VAT
Lilliput’s PC9715 is our newest high grade industrial Panel PC system. With an IP64 rating it’s fully protected against dust ingress and is safe from water splashes from all directions
Fully featured, with a capacitive touch screen and multiple input points and connection sources, this systems is geared up for almost any usage environment.
Designed for tough environments and with multiple operating systems available – the PC9715 is ideal for high traffic point of sales systems, interactive digital advertising, or industrial production lines.
| Panel PC Specifications | |
| Processor | Freescale iMX6 Quad Core 1.0Ghz |
| RAM Memory | 1G DDR3 – up to 2GB Embedded |
| Internal Storage | 8GB Flash Memory |
| Graphics | 3D 200Mtri/s 1000Mpxl/s OpenGL ES 3.0 & Halti, CL EP |
| Optical Drive | None (external USB optional) |
| Networking | 10/100 LAN |

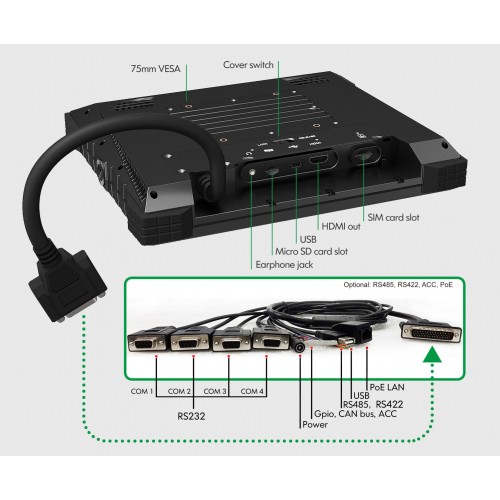

| I/O Connections (additional) | HDMI Output – Micro SD card Socket – USB 2.0 Port and Host – Headphone Jack – DC Power Input – RS232 x 4/RS232 x 3, RS485x1/ RS 232 x 2, RS422 x 1, RS485 x 1 – LAN – GPIO Input x 4, GPIO Out x 6 |
| Chassis | Aluminium outer chassis |
| Screen Size (diagonal) | 9.7 inch |
| Aspect Ratio | 4:3 |
| Touchscreen Technology | Capacitive |
| Software Installed | One to be installed (Android 4.3.1 – Linux Debian 7.0 – WinCE 7.0) |
| Input Power | 12V |
| Mounting Options | |
| Contents Of Box | |
| Product | PC9715 Panel PC |
| Connection Cables | RS232/485 Adpator cables |
| Power Adaptor | 12V Power Adaptor (UK, EU and US fittings available) |
| Mounts and stands | Rear mounting bracket (optional) |
| Additional accessories | Driver disk and touchscreen Software |

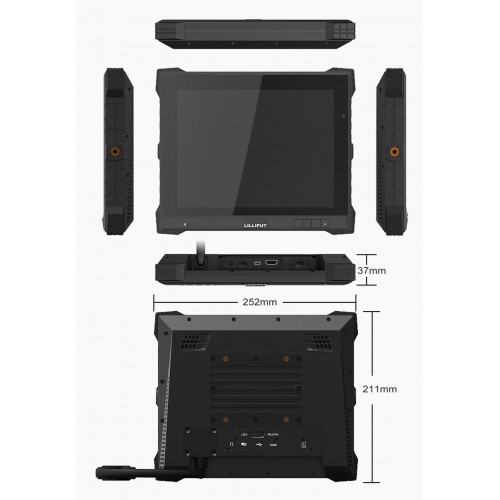

| Dimensions | |
| Height (mm) | 211 |
| Width (mm) | 252 |
| Depth (mm) | 37 |
| Weight (g) | 1340 |
| Weight | 1340 g |
|---|
