Lilliput PC7106-PRO – 7″ Android 9 Panel PC w/ Capacitive Touch Screen
€ 448,00 + VAT
The PC7106-Pro is an updated and massively improved version of the classic PC7106 system. Designed for use in automotive and industrial environments, and installed with either Android 9.0 or Linux Debian 10 OS, the PC7106 has application in many diverse fields – such as Fleet Management, Warehouse Management & Stock Control, Agriculture & Construction Vehicle and a host of others.
 |
 |
 |
| Display | |
| Aspect Ratio | 16:10 |
| Brightness | 450 cdm² |
| Display Screen | 7″ IPS |
| Resolution | 800 x 480 |
| Touch Panel | Capacitive Multi-Touch |
| Panel PC Specifications | |

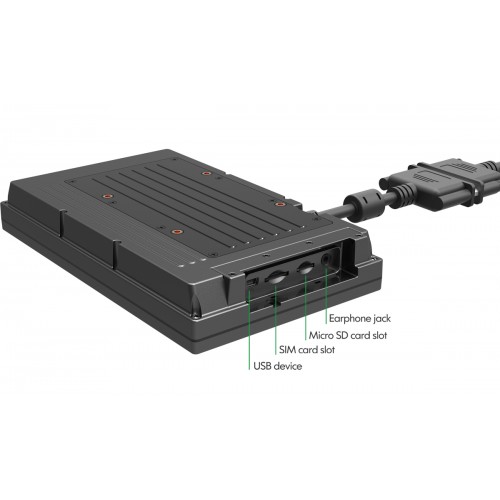

| Connections | Earphone Jack (3.5mm) , DC Jack, Optional RS232 and RS485, GPIO x8, x 2 (Integrated CAN x 1 by default ,CAN x 2 are optional) |
| Operating System | Android 9.0/Linux Debian 10 |
| Sensors | Gyroscope, Accelerometer, Compass |
| Processor | NXP i, MX 8M Mini Arm Cortex A53 Quad Core 1.6GHz Processor |
| RAM Memory | 2G LPDDR4 / 4G LPDDR4 (optional) |
| Internal Storage | 16GB Flash / 32GB Flash (optional) |
| Graphics | 3D GPU (1x shader,OpenGL ES 2.0),2D GPU |
| Media | 1080p60 Video Encode and Decode |
| Networking | 1000M Lan Ethernet |
| Interfaces | |
| SD Card | 1x Port |
| USB Ports | USB Device 2.0, USB host 2.0 |
| Weight | 1200 g |
|---|
