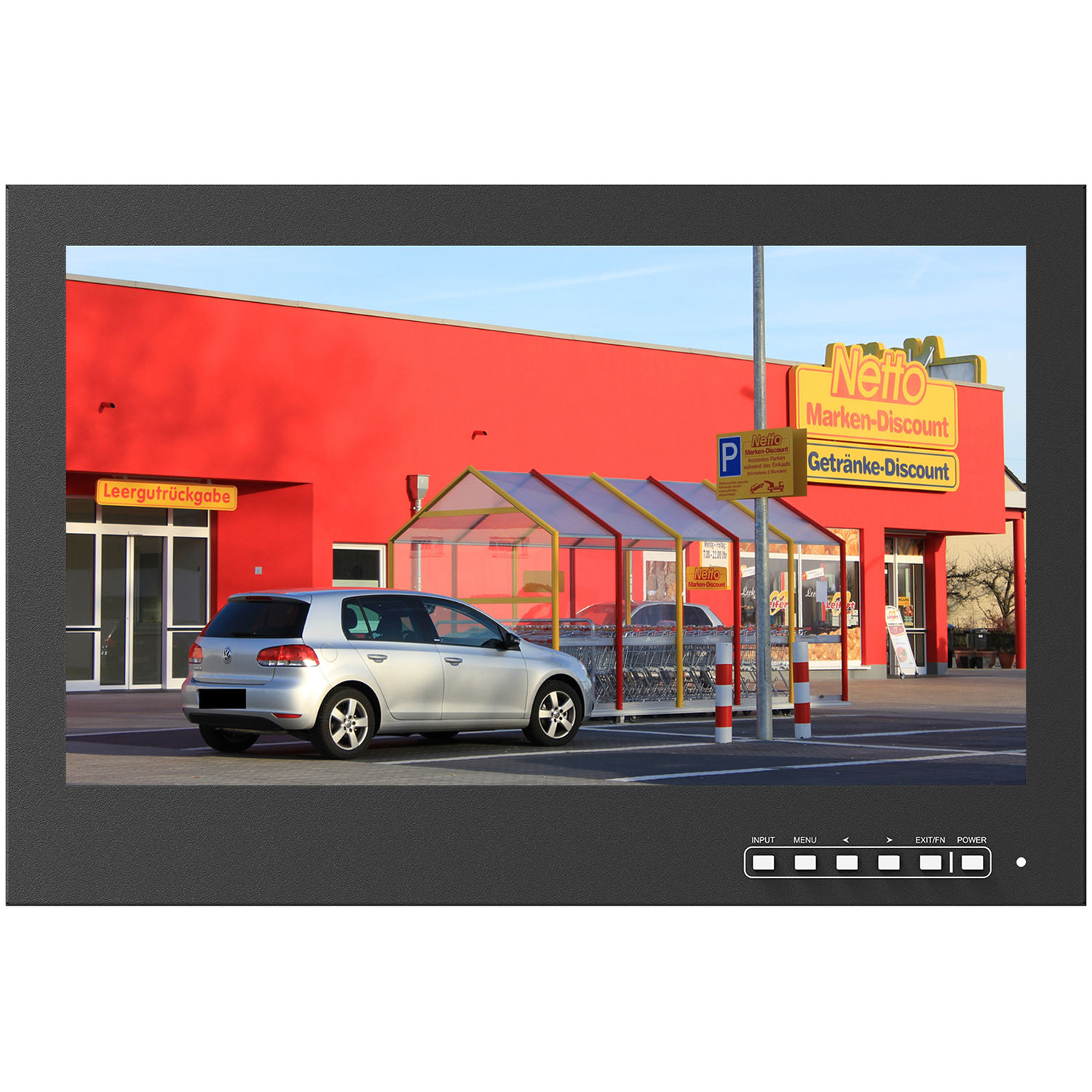

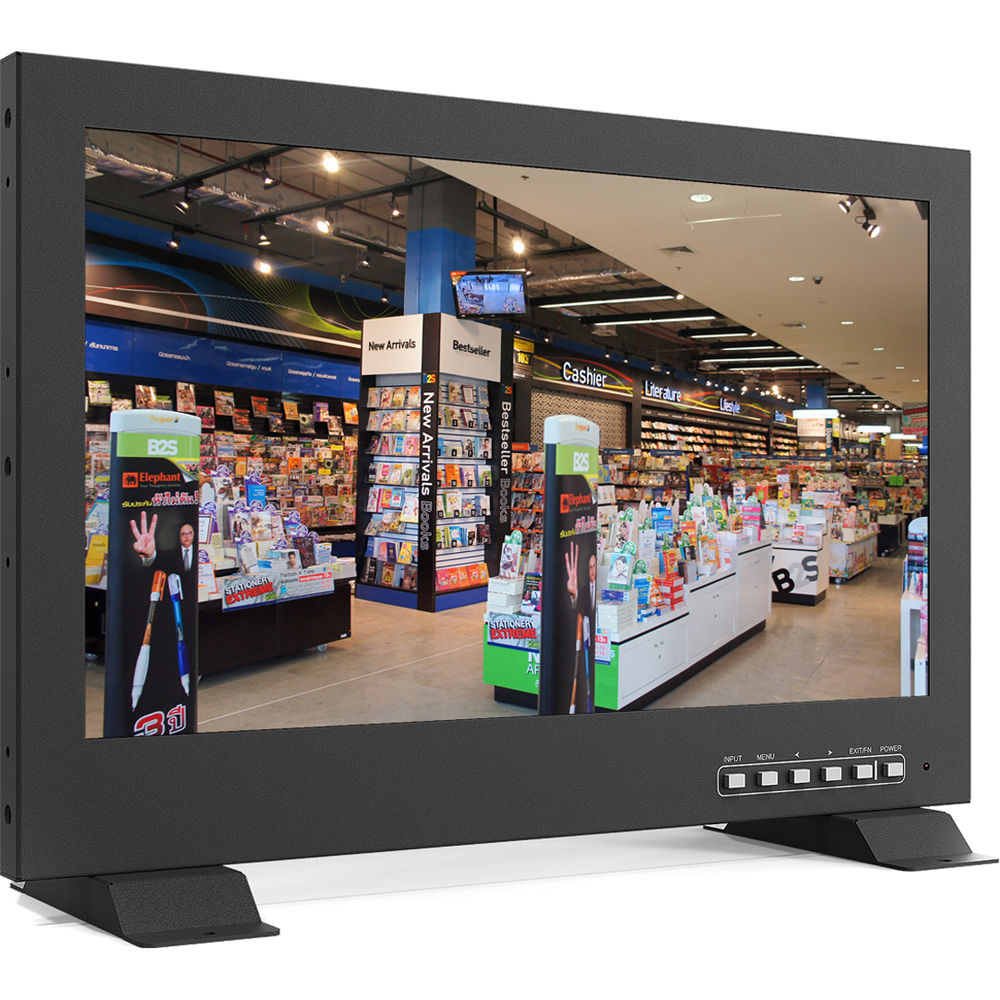

Lilliput PVM150S 15.6″ Rack-Mountable 1920 x 1080 LCD Surveillance Monitor
€ 439,00 + VAT
- 1920 x 1080 Resolution
- 15.6″ IPS LCD Display
- 178/178° H/V Viewing Angles
- 16:9 Aspect Ratio
- 1000:1 Contrast Ratio
- Built-In Speakers, Headphone Jack
- HDMI, VGA & AV Inputs
- 3G-SDI Input & Loop Output
Monitor the feed from your surveillance cameras with the PVM150S 15.6″ Rack-Mountable LCD Surveillance Monitor from Lilliput. This unit displays video at a maximum resolution of 1920 x 1080. It features 178° horizontal and vertical viewing angles and a 16:9 aspect ratio. The monitor is equipped with built-in speakers, an HDMI input, a VGA input, a 3G-SDI input & loop output, an AV input, and a headphone jack.
| Display Size |
15.6″
|
| Panel Type |
IPS-Type LCD
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|

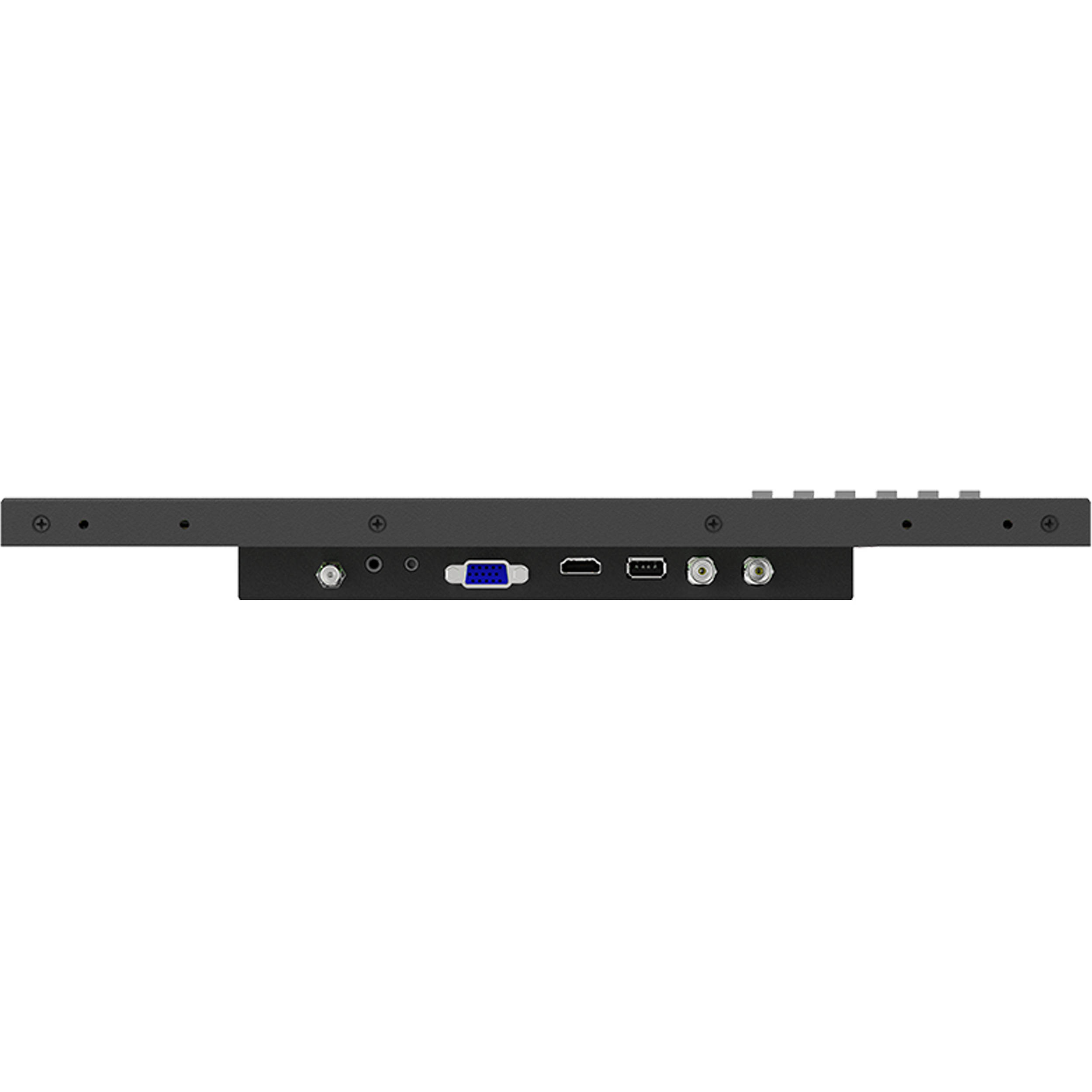

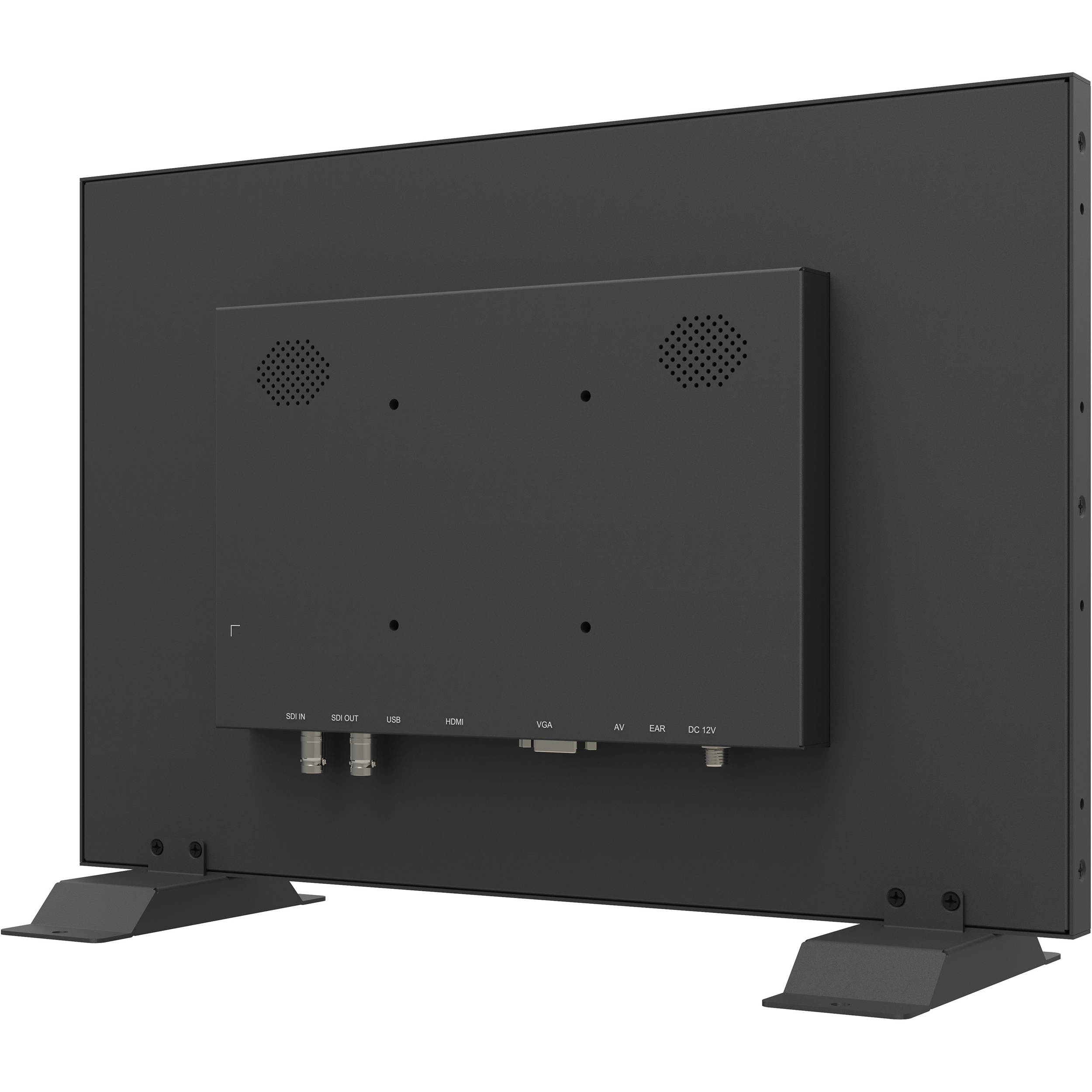

| Inputs |
1x HDMI 1.4
1x DE-15/DB-15 (VGA) 1x 3G-SDI 2x 1/8″ / 3.5 mm |
| Outputs |
1x BNC (SDI)
|
| USB I/O |
1x USB-A 2.0
|
| Display Size |
15.6″
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
1000 nits / cd/m2
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Contrast Ratio |
1000:1
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|
| Viewing Angle (H x V) |
178 x 178°
|
| Inputs |
1x HDMI 1.4
1x DE-15/DB-15 (VGA) 1x 3G-SDI 2x 1/8″ / 3.5 mm |
| Outputs |
1x BNC (SDI)
|
| HDCP Support |
No
|
| USB I/O |
1x USB-A 2.0
|
| Multi-Input Support (PIP/PBP) |
No
|
| Built-In Speakers |
Yes
|
| Built-In Mic |
No
|
| Operating Temperature |
12 to 92°F / -20 to 60°C
|
| Storage Temperature |
-22 to 158°F / -30 to 70°C
|
| Power Consumption |
Typical: 24.0 W
|
| Input Power |
10 to 24 VDC at 2 A
|
| Power Adapter Type |
External
|
| Material of Construction |
Metal
|
| Lock Slot |
No
|
| Dimensions |
9.9 x 6.2 x 1″ / 251.5 x 157.5 x 25.4 mm
|
| Weight |
6.33 lb / 2.87 kg
|
| Package Weight |
11.1 lb / 5035
|
| Box Dimensions (LxWxH) |
19.1 x 16 x 4″
|
| Weight | 5035 g |
|---|
