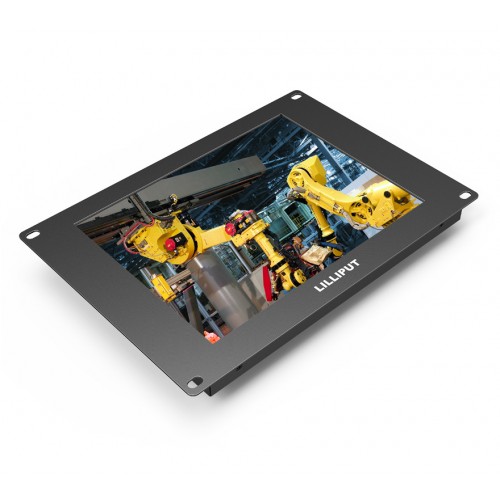

LILLIPUT TK1040-NP/C/T – 10.4″ HDMI Open Frame Monitor (with touchscreen)
€ 248,00 + VAT
The TK1040-NP/C/T is a 10.4″ resistive touchscreen open frame monitor. This means that the monitor can be mounted “front-on” so it sits behind a wall display or window design and can be discreetly dressed in and mounted into an existing design. With the built in touch screen you can add an interactive layer to your display, making for a solid, fully controllable display system.
The 10.4″ Display features a 5 wire resistive touch screen, 4:3 Aspect Ratio, 800 x 600 resolution, 130° / 110° viewing angles, 400:1 contrast, and 250cdm brightness.

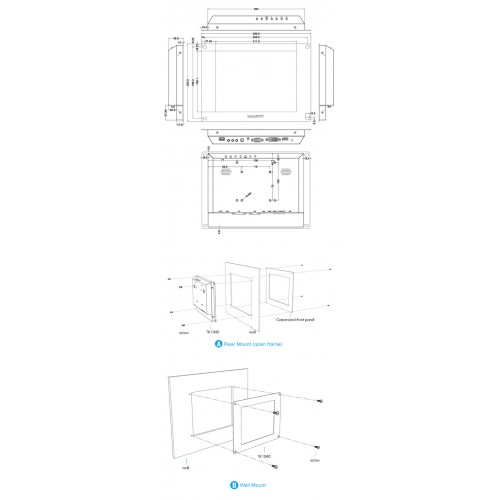

Supplied as an open frame unit, the TK1040 can be mounted by the rear open frame mounts, as well as a choice of the VESA 75 and VESA 100 mounts. You can also mount the monitor on a desktop or inside from a rooftop / ceiling rooftop with the specific VESA 75 mount (sold seperately).

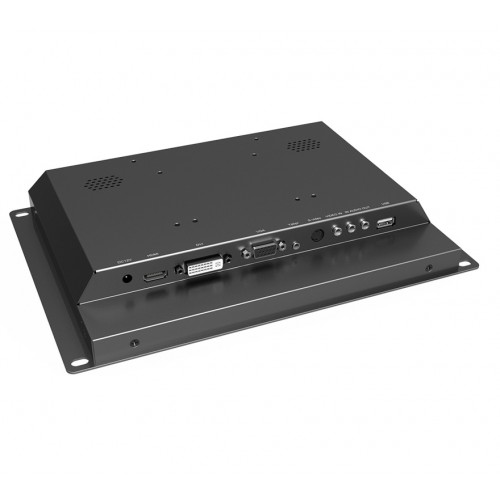

A wide range of video inputs are available for feeding to the TK1040-NP/C monitor – HDMI, DVI, VGA, Composite and S-Video – ensuring a wide compatibility with most video systems.
The TK1040-NP/C has a metal housing frame – designed to keep the system in good order, protect it from damage, and allow for firm fixing to a wall or display board.
| Display | |
| Aspect Ratio | 4:3 |
| Brightness | 1000 cdm/2 |
| Contrast Ratio | 400 : 1 |
| Display Screen | 10.4″ Backlit LED |
| Resolution | 800 x 600 (Native Resolution) |
| Touch Panel | 5 Wire Resistive Touch |
| Viewing Angle | 130° / 110° |
| Input | |
| Input Signal | HDMI / DVI / VGA / Component / Composite / S-Video |
| Audio | |
| Speaker | 2 |
| Dimensions | |
| Height (mm) | 202.80 |
| Width (mm) | 286.8 |
| Depth (mm) | 38.8 |
| Weight (g) | 1700 |
| Power | |
| Audio Output | <=12W |
| Battery | External (Optional) |
| Current | 650 mA |
| Input Voltage | DC 12V |
| Power Consumption | <=8W |
| Environment | |
| Operating Temperature | -20°c – 60°c |
| Storage Temperature | -20°c – 70°c |
| Weight | 1700 g |
|---|
