Lilliput TK700-NP/C/T- 7″ Open Frame Industrial Touch Monitor
€ 162,00 + VAT
The TK700-NP/C/T is an Open Frame 7″ monitor unit – perfect for installation into industrial environments where a PC or computer system is already in use and a new / extra built in display is required. It is a very strong piece of monitoring hardware with 1000 NIT (1000cdm²) panel – making it Lilliput’s first fully sunlight readable monitor – and a very capable monitor for industrial and rugged installation.
 |
 |
 |
| The metal housing means that the monitor can be mounted in a number of ways. The above shows it in an open frame mount configuration – you can install the monitor at the back of a retail display and mount your own type of fascia across the front. Below shows how you would install the monitor into such a set up. A good design, ideal for customization into an existing POS or advertising display. |
 |
 |
| A plethora of inputs abound on the TK700-NP/C/T – as above you can see HDMI 1.4 input (which will accept up to a 4K 30Hz signal as well as legacy inputs for both VGA and analogue video. You’ll also note the USB port – this allows the touch screen of the monitor to interact with the host computer system |
 |
 |
| Display | |
| Aspect Ratio | 16:9 |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 500:1 |
| Display Screen | 7″ |
| Touch Panel | 4 Wire Resistive |
| Viewing Angle | 140° / 120° (H/V) |
| Input | |
| Input Signal | HDMI 1.4 x 1, VGA, A/V x2, Audio |
| Size | |

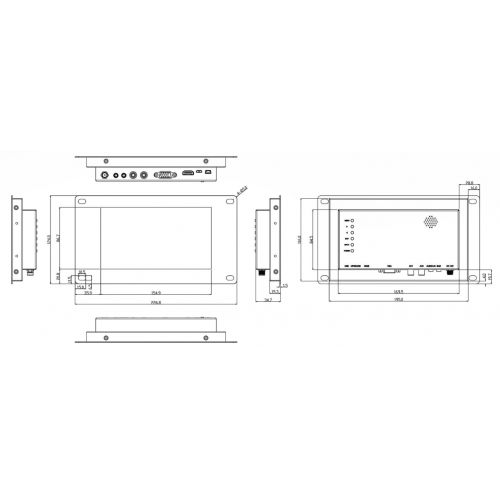

| Dimensions | 279.6 x 195.5 x 36.1 (Open Frame) / 1226.8 x 124 x 34.7 |
| Weight | 950g (Open Frame / 970g |
| Power | |
| Audio Output | <=1W |
| Current | 700mA (12V) |
| Input Voltage | DC 10-24V |
| Environment | |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Weight | 970 g |
|---|
