PLEASE NOTE – BEFORE ORDERING
PLEASE CHECK THAT YOUR CAMERA’S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)
10 inch high definition screen
10” high definition 4:3 monitor
The FA1045 is a 10″ monitor with a 4:3 aspect ratio, similar to the regular 17″ or 19″ monitor you use with your desktop computer. The standard 4:3 aspect ratio is well suited to applications that require a non-widescreen aspect ratio, such as CCTV monitoring and certain broadcast applications.
HDMI, DVI, VGA, YPbPr, composite S-Video
Unique to the FA1045, it also features a YPbPr video input (which is used for receiving analogue component signals) and an S-Video input (popular with legacy AV equipment). We recommend the FA1045 to customers who plan to use their monitor with a range of AV equipment, as this 10 inch monitor is certain to support it.
Perfect CCTV monitor
You won’t find a more suitable CCTV monitor than the FA1045. The 4:3 aspect ratio and wide selection of video inputs means this 10 inch monitor will work with any CCTV equipment, including DVRs.
| Monitor Specification | |
| Screen Size (diagonal) | 10.4 inch |
| Aspect Ratio | 4:3 |
| Native Resolution | 800×600 (native) |
| Maximum Resolution | 1920×1080 (maximum) |
| Viewing Angle (degrees) | 130º x, 110º y |
| Brightness Ratio (cd/m2) | 250 |
| Contrast Ratio | 400:1 |
| Backlight | CCFL |
| Video Inputs | HDMI, DVI, VGA, YPbPr, composite |
| Audio Outputs | Internal Speaker |
| Touchscreen Technology | 4 wire resistive |
| Input Power | 12V DC |
| Operating Temperature | -20 to 60 deg C |

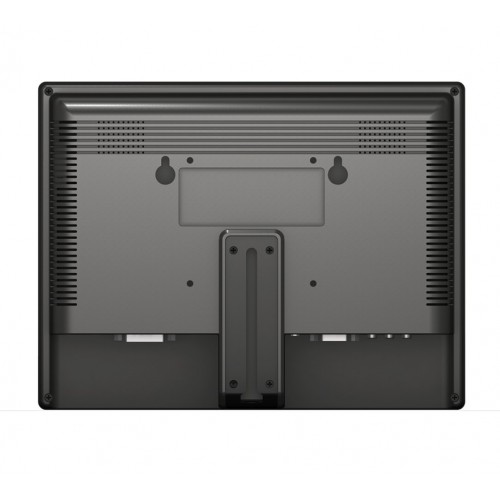

| Mounting Options | VESA 75, Vertical Slot Mount |
| Contents Of Box | |
| Product | 1 x FA1045/C/T Monitor |
| Connection Cables | 1x HDMI cable, 1x VGA cable, 1 x USB cable |
| Power Adaptor | 1x DC 12V plug (available in UK, US and EU style) |
| Mounts and stands | |
| Additional accessories | |
| Dimensions | |
| Height (mm) | 200 |
| Width (mm) | 226 |
| Depth (mm) | 39 |
| Weight (g) | 902 |
